| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Mounting Type | |
| Number of Positions | |
| Termination Style |

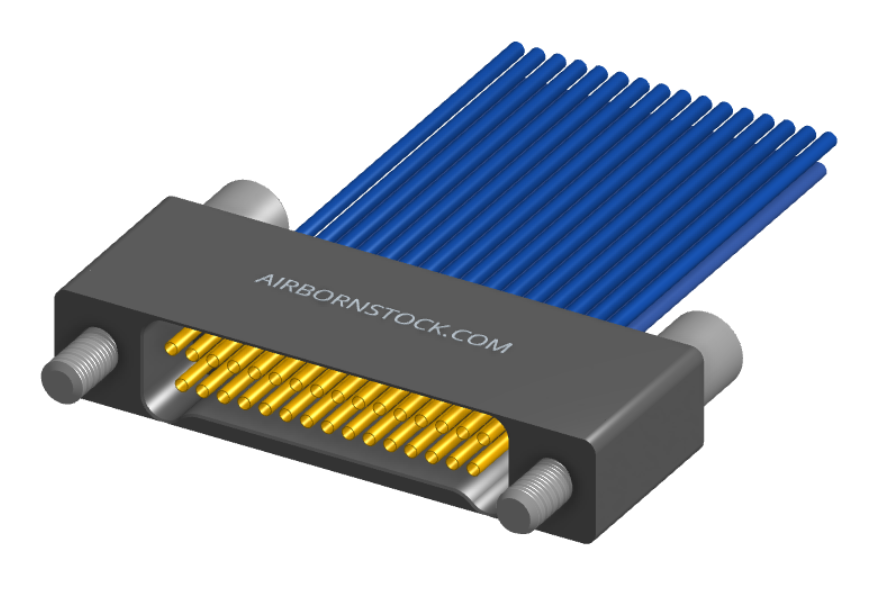

The AirBorn NM-222-031-261-JCAA is a nano-miniature D-shaped connector designed for board mounting. It offers 62 contacts arranged in 2 rows, with a precise 0.025" (0.64mm) contact pitch. The termination type is Plated Through Hole (PTH), suitable for vertical mounting.
This connector features an electroless nickel body and is equipped with captivated turning jackscrew attachment hardware for secure mating. The D-shaped design provides a narrow footprint and low profile, making it suitable for space-constrained applications. The part number NM-222-031-261-JCAA indicates its specific configuration within the AirBorn NM-22 series.
Key specifications include a 2-row configuration with 31 contacts per row, totaling 62 positions. The termination is specified as Crimp (Vertical - Straight), and it is designed for board mount applications. The hardware style is turning jackscrews, which are captivated for ease of use and security.
This connector is part of the AirBorn N Series, which focuses on nano-miniature connectors with a 0.025" pitch. It is designed for I/O applications where high density and reliability are crucial. The product is listed with a lead time of 6-8 months and a minimum order quantity of 7.
| Qty | Low | High |
|---|---|---|
| 1+ | $584.59 | $584.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact pitch is 0.64 mm.
This connector has 62 contacts.
It uses vertical plated through hole (PTH) termination.
The mounting type is board mount.
It features captivated turning jackscrew attachment hardware.
The body material is electroless nickel.
