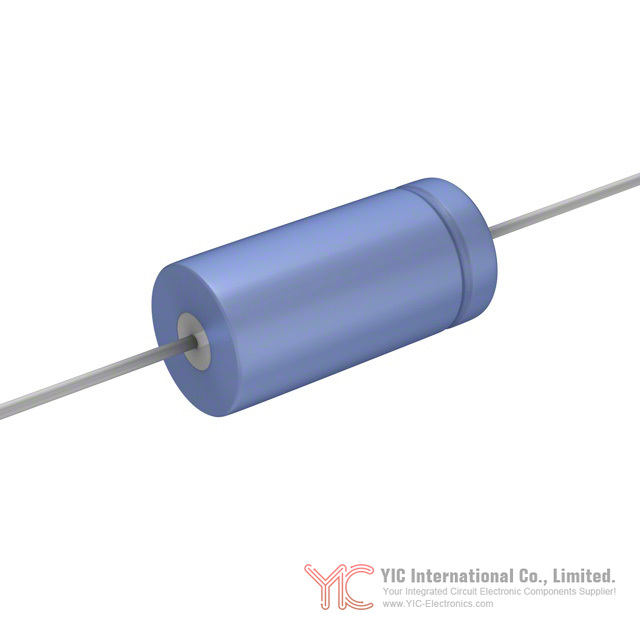

NLW20-16 The Cornell Dubilier Electronics NLW20-16 is an aluminum electrolytic capacitor with a 16V voltage rating and 20µF capacitance. It features an axial, can package and operates from -40°C to 105°C.
Mfr Part #:

NLW20-16

Available from 1 distributors
Mfr Name: Cornell Dubilier Electronics (CDE)
Cornell Dubilier Electronics (CDE)
The Cornell Dubilier Electronics NLW20-16 is an aluminum electrolytic capacitor with a 16V voltage rating and 20µF capacitance. It features an axial, can package and operates from -40°C to 105°C.
✓ Total Stock: 50 pcs
$ Price Range: $0.04

NLW20-16 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLW20-16 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Dimensions
ESR (Equivalent Series Resistance)
Mounting Type
Operating Temperature
SVHC Present
Tolerance
View Similar Products (0)

NLW20-16 Description

Short technical summary and product information.

The NLW20-16 from Cornell Dubilier Electronics is an aluminum electrolytic capacitor designed for general purpose applications. It offers a capacitance of 20µF and a rated voltage of 16V.



This capacitor operates within a temperature range of -40°C to 105°C, with a specified lifetime of 1000 hours at 105°C. Key electrical characteristics include a tolerance of -10% to +75%, a ripple current of 62 mA at 120 Hz, and an ESR of 16.6 Ohms at 120 Hz.



The component is housed in an axial, can package and is designed for through-hole mounting. Its dimensions are 0.280 inches in diameter by 0.570 inches in length (7.11mm x 14.49mm). The RoHS status is compliant, and it is classified under MSL 1.



This capacitor is suitable for various electronic circuits requiring stable capacitance and voltage handling within its specified parameters.

NLW20-16 Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: NLW
Canonical Name: NLW20-16 Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

NLW20-16 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

NLW20-16 Estimated Pricing

Qty Low High
1+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLW20-16 Features

  • 20µF capacitance with 16V voltage rating.
  • Wide -40°C to 105°C operating temperature range.
  • 1000 hours lifetime at 105°C.
  • Axial, can package for through-hole mounting.
  • RoHS compliant and lead free.

NLW20-16 Applications

  • Suitable for general purpose applications.
  • Used in power supply filtering circuits.
  • Ideal for signal coupling applications.
  • Applicable in audio frequency circuits.

NLW20-16 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the NLW20-16?

The NLW20-16 has a capacitance of 20 µF at 120 Hz.

What is the rated voltage of the NLW20-16?

The rated voltage is 16 V.

What is the tolerance of this capacitor?

The capacitance tolerance is -10% to +75%.

What is the package type of the NLW20-16?

The package is an axial can for through-hole mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the ripple current rating?

The ripple current is 62 mA at 120 Hz and 71.3 mA at 10 kHz.

What is the expected lifetime of the NLW20-16?

The lifetime is 1000 hours at 105°C.
