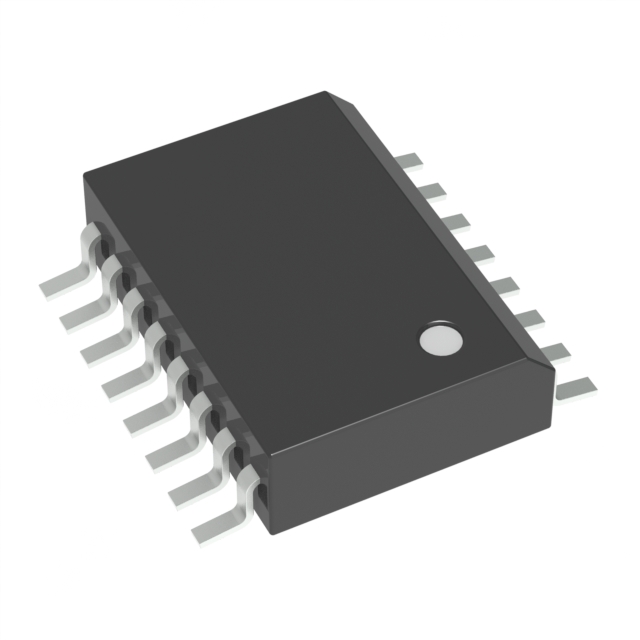

NLV14538BDWR2G The NLV14538BDWR2G from ON Semiconductor is a dual, retriggerable, resettable monostable multivibrator. It operates over a wide voltage range and features a 95 ns propagation delay.
Mfr Part #:

NLV14538BDWR2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NLV14538BDWR2G from ON Semiconductor is a dual, retriggerable, resettable monostable multivibrator. It operates over a wide voltage range and features a 95 ns propagation delay.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.50

NLV14538BDWR2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLV14538BDWR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Independent Circuits
Logic Type
Mounting Type
Operating Temperature
Power Dissipation
Propagation Delay
Schmitt Trigger Input
Supplier Device Package
Voltage
View Similar Products (0)

NLV14538BDWR2G Description

Short technical summary and product information.

The NLV14538BDWR2G is a dual, precision, retriggerable, and resettable monostable multivibrator manufactured by ON Semiconductor. This integrated circuit is designed to produce accurate output pulses with durations determined by external timing components. It supports a wide operating voltage range from 3.0 Vdc to 18 Vdc, making it versatile for various applications.



The device features latched trigger and reset inputs, allowing for reliable control. It can be triggered from either the positive or negative-going edge of an input pulse. The propagation delay is specified at 95 ns, and it is capable of driving low-power TTL loads.



Packaged in a 16-SOIC (0.295", 7.50mm Width) surface-mount package, the NLV14538BDWR2G operates within an industrial temperature range of -55°C to 125°C. Its design includes Schmitt trigger inputs for improved noise immunity. This component is suitable for applications requiring precise pulse generation and timing control.

NLV14538BDWR2G Quick Information

Product Type: Monostable Multivibrator
Series: NLV14538
Canonical Name: NLV14538BDWR2G Dual Precision Retriggerable/Resettable Monostable Multivibrator
Subcategory: Multivibrator

NLV14538BDWR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NLV14538BDWR2G Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLV14538BDWR2G Features

  • Dual, retriggerable, resettable monostable multivibrator.
  • Wide 3.0 Vdc to 18 Vdc operational voltage.
  • 95 ns propagation delay.
  • 16-SOIC surface-mount package.
  • Operates from -55°C to 125°C.

NLV14538BDWR2G Applications

  • Used for precise pulse generation.
  • Suitable for timing control circuits.
  • Applications requiring retriggerable logic.
  • Ideal for resettable pulse circuits.

NLV14538BDWR2G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the DC supply voltage range for the NLV14538BDWR2G?

The DC supply voltage range for the NLV14538BDWR2G is 3.0 Vdc to 18 Vdc.

What is the operating temperature range of the NLV14538BDWR2G?

The NLV14538BDWR2G operates within a temperature range of -55°C to 125°C.

What type of package does the NLV14538BDWR2G come in?

The NLV14538BDWR2G is supplied in a 16-SOIC (0.295", 7.50mm Width) package.

What is the typical propagation delay of the NLV14538BDWR2G?

The typical propagation delay for the NLV14538BDWR2G is 95 ns.

Does the NLV14538BDWR2G have Schmitt Trigger inputs?

Yes, the NLV14538BDWR2G features Schmitt Trigger inputs.

How many independent circuits does the NLV14538BDWR2G have?

The NLV14538BDWR2G contains 2 independent circuits.
