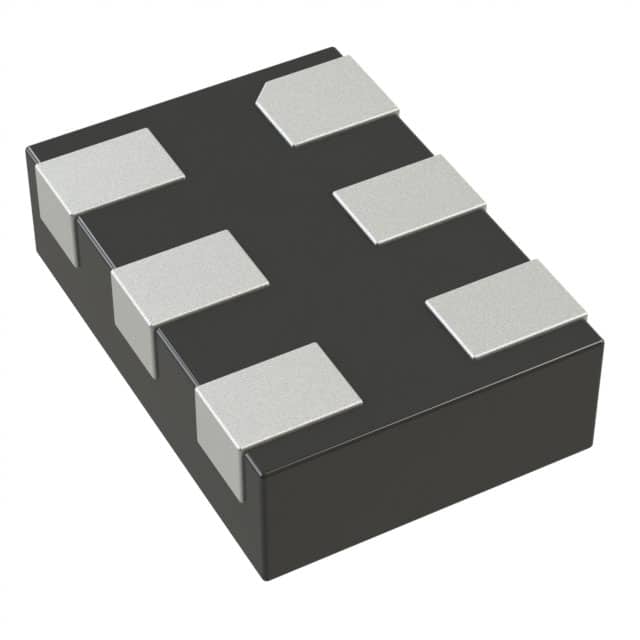

The NLSX5011AMUTAG is a 1-bit configurable dual-supply autosensing bidirectional level translator manufactured by On Semiconductor. This device does not require a direction control pin, simplifying integration. Its I/O ports track two independent power supply rails, VCC and VL, both configurable from 0.9 V to 4.5 V. This allows for flexible translation between higher and lower logic signal voltages.
The NLSX5011AMUTAG features high output current capability, enabling it to drive high capacitive loads. It offers a guaranteed data rate of 140 Mb/s for VCC and VL voltages above 1.8 V, with a general data rate of 100 Mbps. The device includes an Output Enable (EN) input to reduce power consumption by placing I/O ports in a 3-state condition. It is available in a compact 6-UDFN (1.45x1) package, suitable for surface mounting.
Key features include independent VL and VCC supplies, high capacitive drive capability, low bit-to-bit skew, and overvoltage tolerant pins. The translator also provides power-off protection and non-preferential power-up sequencing. It operates over a wide temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.9V to 4.5V, with a high-speed mode requiring VCC and VL above 1.8V.
It is available in a 6-UDFN (1.45x1) surface mount package.
The operating temperature range is -55°C to 125°C.
The device supports data rates up to 100 Mbps.
Yes, it provides ESD protection greater than 8000 V (HBM) on all pins.
Yes, it is a single-channel bidirectional translator.
