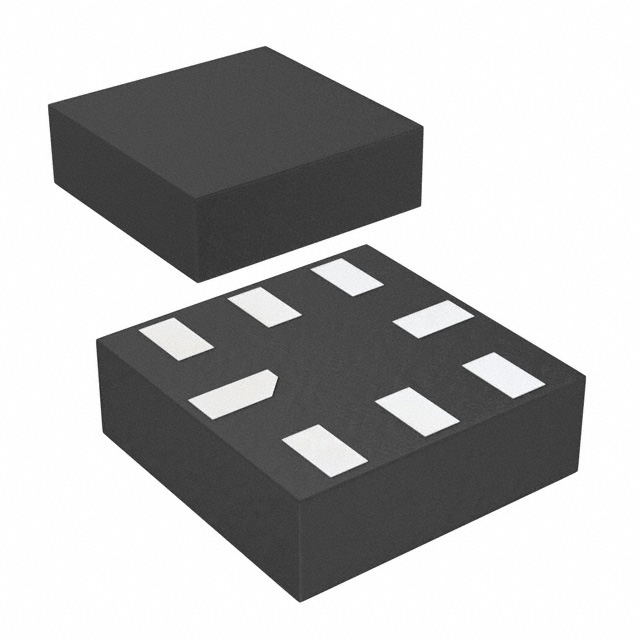

NLSX4302EBMUTCG The ON Semiconductor NLSX4302EBMUTCG is a 2-bit bidirectional level translator. It operates with supply voltages from 1.5V to 5.5V and supports data rates up to 20Mb/s.
Mfr Part #:

NLSX4302EBMUTCG

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NLSX4302EBMUTCG is a 2-bit bidirectional level translator. It operates with supply voltages from 1.5V to 5.5V and supports data rates up to 20Mb/s.
✓ Total Stock: 323,545 pcs
$ Price Range: $0.12

NLSX4302EBMUTCG Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
321,891 pcs
On Request
321891 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
654 pcs
On Request
654 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLSX4302EBMUTCG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Channels per Circuit
Data Rate
Features
Mounting Type
Number of Circuits
Operating Temperature
Operating Voltage
Output Type
SVHC Present
Supplier Device Package
Translator Type
Voltage
View Similar Products (0)

NLSX4302EBMUTCG Description

Short technical summary and product information.

The NLSX4302EBMUTCG from ON Semiconductor is a 2-bit configurable, dual-supply, bidirectional, auto-sensing level translator. It does not require a directional control pin, simplifying integration.



This device supports a wide operating voltage range for both VCC and VL supply rails, from 1.5 V to 5.5 V. This allows for flexible translation between logic signals of different voltage levels. It guarantees a high-speed data rate of 20 Mb/s, making it suitable for various communication protocols.



The NLSX4302EBMUTCG is designed for open-drain applications, such as I2C communication buses. It features auto-direction sensing and overvoltage tolerant enable and I/O pins up to 5.5 V. The device is available in a small, space-saving 8-UQFN package with dimensions of 1.4 mm x 1.2 mm, ideal for compact designs.



Typical applications include I2C and SMBus communication, low-voltage ASIC level translation, and integration into mobile phones, PDAs, and cameras. The device also offers power-off protection and non-preferential power-up sequencing.

NLSX4302EBMUTCG Quick Information

Product Type: Level Translator
Canonical Name: NLSX4302EBMUTCG 2-Bit Dual-Supply Level Translator
Subcategory: Logic

NLSX4302EBMUTCG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NLSX4302EBMUTCG Estimated Pricing

Qty Low High
1+ $0.12 $0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLSX4302EBMUTCG Features

  • 2-bit bidirectional auto-sensing level translator.
  • Wide 1.5V to 5.5V operating voltage range.
  • Guaranteed 20 Mb/s high-speed data rate.
  • Small 1.4 mm x 1.2 mm 8-UQFN package.
  • Suitable for open-drain applications like I2C.

NLSX4302EBMUTCG Applications

  • Used for I2C and SMBus communication.
  • Enables low-voltage ASIC level translation.
  • Ideal for mobile phones and PDAs.
  • Applicable in digital cameras and similar devices.

NLSX4302EBMUTCG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NLSX4302EBMUTCG?

1.5 V to 5.5 V.

What is the package type of the NLSX4302EBMUTCG?

8-UQFN (1.4x1.2 mm).

What is the operating temperature range?

-40°C to 85°C.

What is the data rate of this level translator?

20 Mb/s.

How many channels does the NLSX4302EBMUTCG have?

2 channels.

Is the channel type bidirectional?

Yes, bidirectional.

What is the output type?

Push-pull.
