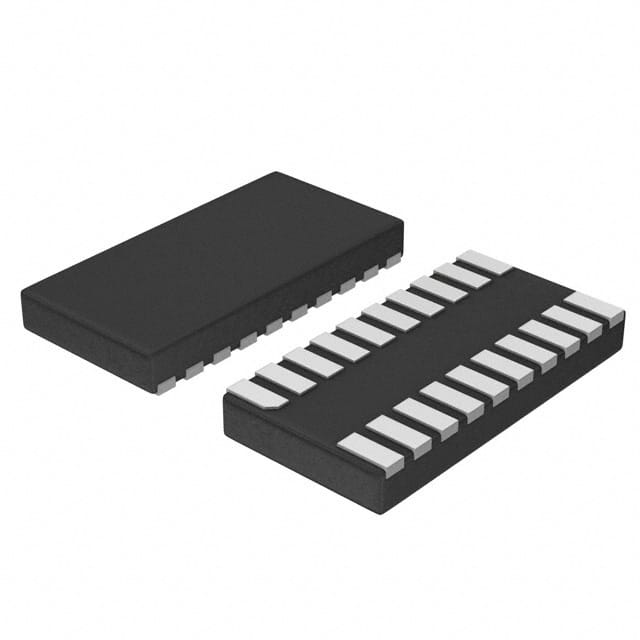

NLSX3018MUTAG NLSX3018MUTAG is a bidirectional voltage level translator from ON Semiconductor, supporting 0.9V to 4.5V operating voltage with 100Mbps data rate. It is housed in a 20UDFN package and operates from -40°C to 85°C.
Mfr Part #:

NLSX3018MUTAG

Available from 5 distributors
Mfr Name: On Semiconductor
On Semiconductor
NLSX3018MUTAG is a bidirectional voltage level translator from ON Semiconductor, supporting 0.9V to 4.5V operating voltage with 100Mbps data rate. It is housed in a 20UDFN package and operates from -40°C to 85°C.
✓ Total Stock: 47,802 pcs
$ Price Range: $0.98

NLSX3018MUTAG Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLSX3018MUTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Channels per Circuit
Data Rate
Features
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Supplier Device Package
Translator Type
Voltage
View Similar Products (0)

NLSX3018MUTAG Description

Short technical summary and product information.

The NLSX3018MUTAG is a bidirectional voltage level translator integrated circuit manufactured by ON Semiconductor. It is designed to translate logic levels between two voltage domains, with VCC configurable from 1.3V to 4.5V and VL configurable from 0.9V to (VCC - 0.4)V. The device guarantees a data rate of 100 Mbps when VL exceeds 1.6V, making it suitable for high-speed digital interfaces.



This translator features an operating temperature range of -40°C to 85°C, allowing use in a variety of industrial and consumer environments. The part is available in a compact 20-pin UDFN package, ideal for space-constrained PCB designs.



Typical applications include level shifting for I2C, SPI, and other serial communication buses, as well as voltage translation between different logic families. The bidirectional capability simplifies design by eliminating the need for direction control signals.

NLSX3018MUTAG Quick Information

Product Type: Bidirectional Voltage Level Translator
Canonical Name: NLSX3018MUTAG - Bidirectional Voltage Level Translator, 0.9V-4.5V, 100Mbps, 20UDFN, -40°C to 85°C
Subcategory: Bidirectional

NLSX3018MUTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NLSX3018MUTAG Estimated Pricing

Qty Low High
1+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLSX3018MUTAG Features

  • Bidirectional voltage level translation with auto direction sensing.
  • Supports 0.9V to 4.5V operating voltage range.
  • Guaranteed 100 Mbps data rate above 1.6V VL.
  • Wide operating temperature range -40°C to 85°C.
  • Compact 20-pin UDFN package for space savings.

NLSX3018MUTAG Applications

  • Ideal for I2C and SPI bus level shifting.
  • Used in mixed-voltage digital system designs.
  • Suitable for handheld and portable electronics.
  • Works in industrial control and sensor interfaces.

NLSX3018MUTAG FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NLSX3018MUTAG?

The device operates with VCC from 1.3V to 4.5V and VL from 0.9V to (VCC - 0.4)V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What data rate can the NLSX3018MUTAG support?

It guarantees a data rate of 100 Mbps when VL is above 1.6V.
