NLSX0102FC2T2G Bidirectional voltage-level translator from onsemi with 1.65V to 5.5V operating range, 24 Mb/s data rate, and integrated 10kΩ pull-up resistors.
Mfr Part #:

NLSX0102FC2T2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
Bidirectional voltage-level translator from onsemi with 1.65V to 5.5V operating range, 24 Mb/s data rate, and integrated 10kΩ pull-up resistors.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.12

NLSX0102FC2T2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLSX0102FC2T2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Channels per Circuit
Data Rate
Features
Mounting Type
Number of Circuits
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Translator Type
Voltage
View Similar Products (0)

NLSX0102FC2T2G Description

Short technical summary and product information.

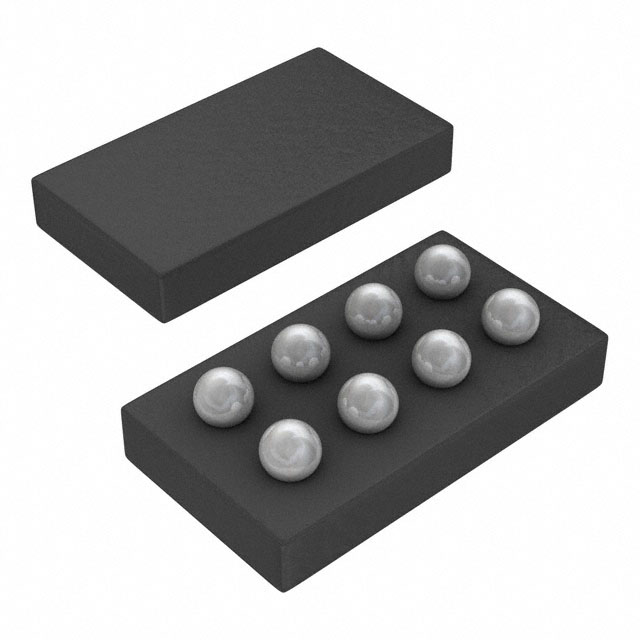

The NLSX0102FC2T2G is a dual-bit bidirectional voltage-level translator from onsemi, designed for mixed-voltage digital systems. It operates over a wide supply voltage range of 1.65V to 5.5V on both the VL and VCC sides, enabling translation between low-voltage and higher-voltage logic families. The device supports a guaranteed data rate of 24 Mb/s, suitable for high-speed interfaces such as I2C, SPI, and UART. Integrated 10kΩ pull-up resistors on each I/O line simplify PCB layout and reduce external component count. Housed in a compact 8-bump flip-chip package (8FLIPCHIP), it is ideal for space-constrained applications. The translator automatically senses the direction of data flow without a direction control pin, making it a plug-and-play solution for level shifting.

NLSX0102FC2T2G Quick Information

Product Type: Voltage-Level Translator
Canonical Name: On Semiconductor NLSX0102FC2T2G Bidirectional Voltage-Level Translator
Subcategory: Bidirectional

NLSX0102FC2T2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NLSX0102FC2T2G Estimated Pricing

Qty Low High
1+ $0.12 $0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLSX0102FC2T2G Features

  • Dual-bit bidirectional level translation.
  • Wide operating range 1.65V to 5.5V.
  • Supports data rates up to 24 Mb/s.
  • Integrated 10kΩ pull-up resistors.
  • 8-bump flip-chip package for compact designs.

NLSX0102FC2T2G Applications

  • I2C and SMBus voltage-level translation.
  • SPI interface level shifting.
  • UART communication between voltage domains.
  • Mixed-voltage digital system interfacing.
  • Portable and battery-powered electronics.

NLSX0102FC2T2G FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NLSX0102FC2T2G?

1.65 V to 5.5 V on both VL and VCC sides.

What is the maximum data rate supported?

24 Mb/s.

Does the device have integrated pull-up resistors?

Yes, integrated 10 kΩ pull-up resistors.
