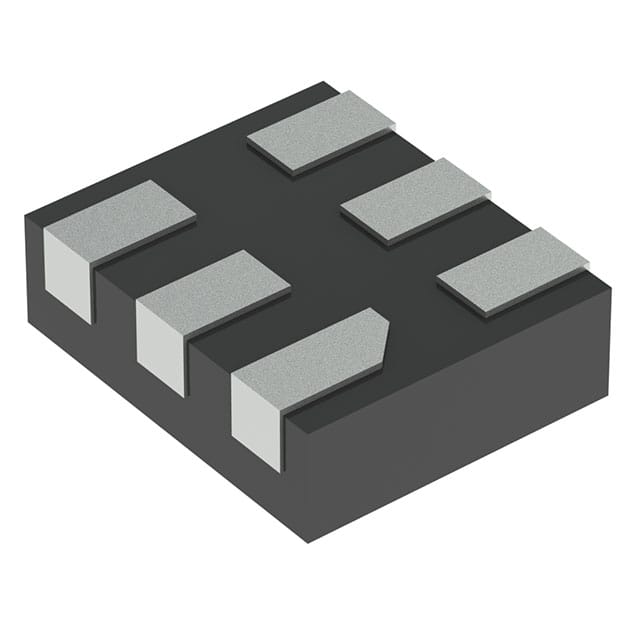

The On Semiconductor NLSV1T240MUTBG is a 1-bit dual-supply inverting level translator. It supports a wide operating voltage range from 0.9V to 4.5V and features power-off protection.

✓ Total Stock: 80,470 pcs

$ Price Range: $0.12

NLSV1T240MUTBG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	80,470 pcs On Request	80470 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

NLSV1T240MUTBG Description

Short technical summary and product information.

The NLSV1T240MUTBG from On Semiconductor is a configurable, dual-supply, 1-bit inverting level translator. It is designed to interface between systems operating at different voltage levels, with input and output ports tracking separate power supply rails, VCCA and VCCB. Both supply rails can be configured from 0.9 V to 4.5 V, enabling universal low-voltage translation.

Key features include a wide VCCA and VCCB operating range, high-speed operation with balanced propagation delay, and over-voltage tolerance (OVT) protection on inputs and outputs up to 4.5 V. The device also offers power-off protection and outputs that switch to a 3-state condition when VCCB is at ground or when the device is powered off.

This level translator is housed in an ultra-small 1.2 mm x 1.0 mm UDFN6 package, making it suitable for space-constrained applications. It operates over a temperature range of -40°C to 85°C (TA). Typical applications include mobile phones, PDAs, and other portable electronic devices where voltage level translation is required.

The NLSV1T240MUTBG is a Pb-Free device, adhering to environmental standards. Its 6-UDFN surface mount package requires specific soldering profiles for reliable assembly.

NLSV1T240MUTBG Quick Information

Product Type: Level Translator

Canonical Name: 1-Bit Dual-Supply Inverting Level Translator

Subcategory: Level Shifter

NLSV1T240MUTBG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

NLSV1T240MUTBG Estimated Pricing

Qty	Low	High
1+	$0.12	$0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLSV1T240MUTBG Features

Supports 0.9V to 4.5V supply voltages.
1-bit unidirectional inverting translation.
Features power-off protection.
Ultra-small 6-UDFN package.
Operating temperature from -40°C to 85°C.

NLSV1T240MUTBG Applications

Ideal for mobile phone designs.
Suitable for PDA applications.
Used in portable electronic devices.
Enables low-voltage translation.

NLSV1T240MUTBG FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage range of the NLSV1T240MUTBG?

The supply voltage range is 0.9 V to 4.5 V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the NLSV1T240MUTBG available in?

It is available in a 6-UDFN (1.2x1) surface-mount package.

What type of output does this translator have?

It has tri-state, inverted outputs.

Is the NLSV1T240MUTBG unidirectional or bidirectional?

It is a unidirectional voltage level translator.

What is the ESD protection rating?

ESD protection is greater than 2000 V per the Human Body Model.

Category	Translators, Level Shifters
Manufacturer Name	On Semiconductor
Channel Type	Unidirectional
Channels per Circuit	1
ESD Protection	> 2000 V
Features	Power-Off Protection
Input Voltage	-0.5 V to 5.5 V
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature	-40°C ~ 85°C
Output Type	Tri-State, Inverted
Supplier Device Package	6-UDFN (1.2x1)
Supplier Package	6-UDFN (1.2x1)
Translator Type	Voltage Level
Voltage	0.9 V to 4.5 V
