| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,115 pcs
|
18115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Function | |
| Halogen Free | |
| Junction Temperature | |
| Lead Spacing | |
| Mounting Type | |
| Output Current | |
| Secondary Attributes | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |
The NLHV1T0434ZR2G from On Semiconductor is an advanced, high-voltage CMOS RF Antenna Switch Driver designed for high-speed, low-power applications. It features a single channel with high drive capability and an ultra-small footprint, making it suitable for space-constrained designs.
This device supports a wide operating VDD range of 3.0 V to 5.5 V and a wide output VCC range of 16 V to 50 V. Key electrical specifications include low RDSon (10 Ω Max for NMOS, 200 Ω Max for PMOS), high output DC current capability of at least 130 mA, and a maximum input frequency of 2 MHz. It also boasts low static current (IDDmax, ICCmax = 100 µA) and low dynamic current at 100 kHz (IDDdynmax = 0.2 mA, ICCdynmax = 1.0 mA).

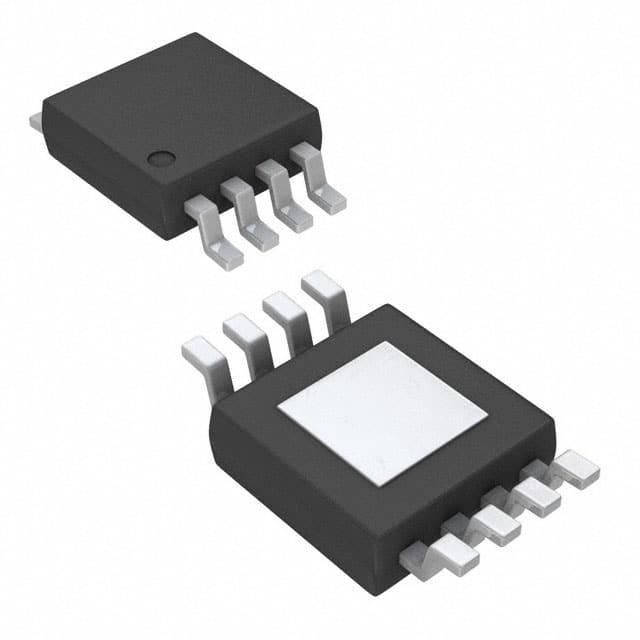

The NLHV1T0434ZR2G is available in an 8-MSOP-EP package, which is surface mountable. The device is Pb-Free, Halogen-Free/BFR-Free, and RoHS-Compliant, meeting stringent environmental standards. Its robust design includes ESD protection and latch-up performance specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.15 | $44.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates with a VDD range of 3.0 V to 5.5 V and a VCC range of 16 V to 50 V.
The maximum input frequency is 2 MHz minimum.
It is supplied in an 8-MSOP-EP package.
Yes, the device is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
