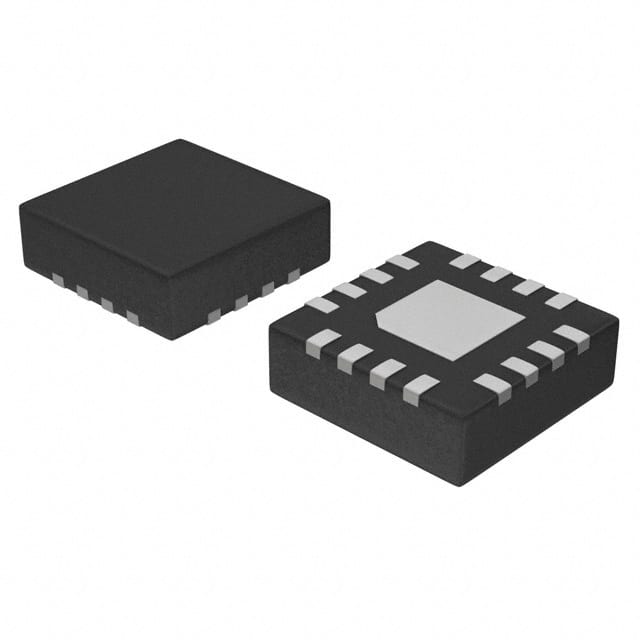

NLAS4783MN1R2G The ON Semiconductor NLAS4783MN1R2G is a 3-circuit analog switch with a 1.65V to 4.5V operating voltage and 1 Ohm on-resistance. It features a -40°C to 85°C operating temperature and is available in a 16-QFN package.
Mfr Part #:

NLAS4783MN1R2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NLAS4783MN1R2G is a 3-circuit analog switch with a 1.65V to 4.5V operating voltage and 1 Ohm on-resistance. It features a -40°C to 85°C operating temperature and is available in a 16-QFN package.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.30

NLAS4783MN1R2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NLAS4783MN1R2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Lead Spacing
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

NLAS4783MN1R2G Description

Short technical summary and product information.

The ON Semiconductor NLAS4783MN1R2G is a versatile analog switch designed for various interface applications. This device features three independent SPDT (Single Pole Double Throw) switch circuits, each offering a low on-resistance of 1 Ohm and a channel resistance of 400 mOhm (Max). It operates within a voltage range of 1.65V to 4.5V and maintains performance across an operating temperature range of -40°C to 85°C.



The switch time for the NLAS4783MN1R2G is rated at 27ns (Ton) and 20ns (Toff), with a charge injection of 50pC and channel capacitance of 5pF. Crosstalk is minimal at -62dB @ 100kHz, and the bandwidth extends to 17MHz. The component draws a low current of 500nA.



Packaged in a compact 16-QFN (3x3) configuration with a 16-VFQFN exposed pad, this surface-mount device is suitable for space-constrained designs. Its robust specifications make it a reliable choice for signal routing and switching in electronic systems.

NLAS4783MN1R2G Quick Information

Product Type: Analog Switch
Canonical Name: NLAS4783MN1R2G Analog Switch
Subcategory: Analog Switches, Multiplexers, Demultiplexers

NLAS4783MN1R2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NLAS4783MN1R2G Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

NLAS4783MN1R2G Features

  • Three SPDT analog switch circuits.
  • Low 1 Ohm maximum on-resistance.
  • Wide 1.65V to 4.5V operating voltage.
  • Fast 27ns/20ns switch times.
  • Surface mount 16-QFN package.

NLAS4783MN1R2G Applications

  • Ideal for signal routing applications.
  • Suitable for battery-powered devices.
  • Used in portable electronic equipment.
  • Effective in low-voltage systems.

NLAS4783MN1R2G FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NLAS4783MN1R2G?

The operating voltage range for the NLAS4783MN1R2G is 1.65V to 4.5V.

What is the on-resistance of the NLAS4783MN1R2G?

The on-resistance of the NLAS4783MN1R2G is 1 Ohm.

What is the operating temperature range for this analog switch?

The operating temperature range for the NLAS4783MN1R2G is -40°C to 85°C.

What package type is the NLAS4783MN1R2G supplied in?

The NLAS4783MN1R2G is supplied in a 16-VFQFN Exposed Pad package, specifically a 16-QFN (3x3) size, for surface mounting.
