| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,730 pcs
|
26730 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel | |
| Crosstalk | |
| Current | |
| Frequency | |
| Halogen Free | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |
The NLAS3257AMU3TCG from ON Semiconductor is an advanced, high-speed single pole double throw (SPDT) analog switch designed for applications requiring efficient signal routing. This device operates with a supply voltage range of 1.65V to 4.5V, making it versatile for various electronic systems.
Key electrical characteristics include a low on-resistance of 9.3 Ohms and a fast propagation delay of 0.25 ns. The switch offers a crosstalk of -21dB at 240kHz and supports frequencies up to 900MHz, ensuring signal integrity in demanding applications.

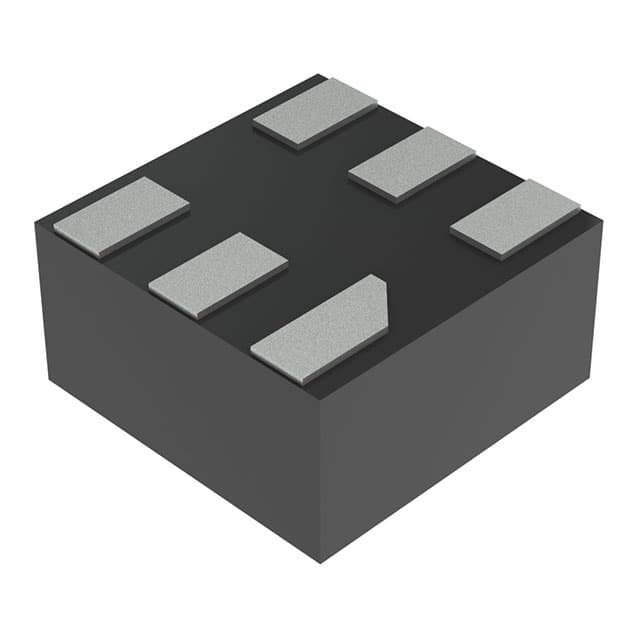

Packaged in an ultra-small 1x1 mm 6-UDFN footprint, the NLAS3257AMU3TCG is suitable for space-constrained designs. It operates within an ambient temperature range of -40°C to 85°C. The device is Pb-free and Halogen-free, complying with modern environmental standards.
Typical applications include mobile phones, PDAs, and cameras where high-speed switching and minimal footprint are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates from 1.65 V to 4.5 V.
It is housed in a 6-UDFN package.
The typical on resistance is 9.3 ohms.
The maximum propagation delay is 0.25 nanoseconds.
>6000 V (Human Body Model).
Yes, it is RoHS3 compliant.
Yes, with a maximum switch time of 0.25 ns, it supports high-speed switching.
