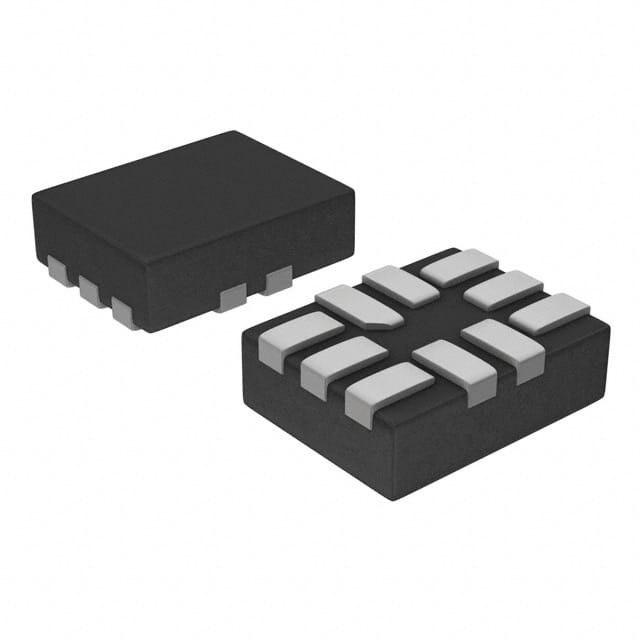

The ON Semiconductor NL3S2223MUTBG is a Double Pole Double Throw (DPDT) switch optimized for high-speed USB 2.0 applications in portable devices. It offers a typical bandwidth exceeding 950 MHz and features ultra-low on-capacitance (CON) of 5.5 pF at 3.3V and low on-resistance (RON) of 5.0 Ohm at 4.2V.
This switch is designed to route multiple signal types through a single USB interface connector. Its low CON and RON values allow it to pass any speed USB data or audio signals to terminals like external headsets. The device operates within a voltage range of 1.65V to 4.5V and includes 8 kV HBM ESD protection on all pins.
The NL3S2223MUTBG is housed in a compact 1.4 mm x 1.8 mm UQFN10 package, making it suitable for space-constrained designs. It is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant, aligning with environmental considerations.
Typical applications include high-speed USB 2.0 data transfer in mobile phones, portable devices, digital cameras, smartphones, tablets, power banks, drones, and wearables.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical on-resistance is 5.0 Ohm at VCC = 4.2 V.
The typical on-capacitance is 5.5 pF at VCC = 3.3 V.
The operating voltage range is 1.65 V to 4.5 V.
The typical bandwidth is 950 MHz.
The device is supplied in a 10-UQFN package with dimensions of 1.4 mm x 1.8 mm.
Typical applications include high-speed USB 2.0 data in mobile phones, portable devices, digital cameras, smartphones, tablets, power banks, drones, and wearables.
