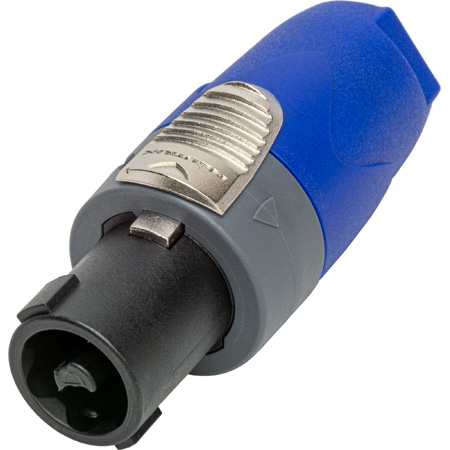

NL2FX The Neutrik NL2FX is a 2-pole female loudspeaker cable connector featuring the industry-standard speakON connection. It offers a robust design with a reliable Quick Lock system.
Mfr Part #:

NL2FX

Available from 1 distributors
Mfr Name: Neutrik
Neutrik
The Neutrik NL2FX is a 2-pole female loudspeaker cable connector featuring the industry-standard speakON connection. It offers a robust design with a reliable Quick Lock system.
✓ Total Stock: 2 pcs
$ Price Range: $1.00

NL2FX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NL2FX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connection Type
Contact Plating
Contact Resistance
Contacts
Gender
Insulation Resistance
Rated Voltage
Shell Material
Temperature Range
View Similar Products (0)

NL2FX Description

Short technical summary and product information.

The Neutrik NL2FX is a 2-pole female cable connector designed for loudspeaker applications. It utilizes the widely adopted speakON connection system, known for its reliability and robust construction.



This connector features a rated current of 32 A rms per contact and a rated voltage of 250 V ac. It is designed to accommodate cable outer diameters ranging from 6 to 10 mm, with a cable retention force of at least 220 N. The wiring is handled via screw-type terminals or soldering, and it includes a stranded wire protection.



The NL2FX incorporates Neutrik's "Quick Lock" system for easy and precise locking. The housing is constructed from high-impact materials, ensuring long-lasting performance. The strain relief is a single piece, chuck-type design made from Polyacetal (POM).



Environmental specifications include a temperature range of -30 °C to +80 °C and a flammability rating of UL 94 V-0. The contact plating is 4 µm silver. This product is certified according to IEC61984 and suitable for IEC62368-1 compliant devices. Note that this product is discontinued, with NL2FXX-W-S as its direct replacement.

NL2FX Quick Information

Product Type: Loudspeaker Cable Connector
Series: NL2FX
Canonical Name: Neutrik NL2FX 2 Pole speakON Female Cable Connector
Subcategory: speakON

NL2FX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NL2FX Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

NL2FX Features

  • Industry-standard speakON connection type.
  • Rated for 32 A rms continuous current.
  • Features a reliable "Quick Lock" system.
  • Accommodates 6 to 10 mm cable O.D.
  • Suitable for IEC62368-1 compliant devices.

NL2FX Applications

  • Professional loudspeaker cable connections
  • High-current audio amplifier outputs
  • Stage and touring sound systems
  • Permanent installation speaker wiring
  • IEC61984 certified power connections

NL2FX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated current per contact for the Neutrik NL2FX?

The rated current per contact is 32 A rms continuous.

What is the maximum voltage rating for the NL2FX connector?

The rated voltage is 250 V ac.

What cable outer diameters can the Neutrik NL2FX accommodate?

It can accommodate cable outer diameters from 6 to 10 mm.

What wiring methods are supported by the NL2FX?

It supports screw type terminals or soldering.

What is the operating temperature range for the NL2FX?

The operating temperature range is -30 °C to +80 °C.

Is the Neutrik NL2FX discontinued?

Yes, this product is discontinued. The direct replacement is NL2FXX-W-S.
