NL17SZ74MQ1TCG The ON Semiconductor NL17SZ74MQ1TCG is a D-Type flip flop with a single bit per element. It operates at clock frequencies up to 200 MHz.
Mfr Part #:

NL17SZ74MQ1TCG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NL17SZ74MQ1TCG is a D-Type flip flop with a single bit per element. It operates at clock frequencies up to 200 MHz.
✓ Total Stock: 84,000 pcs
$ Price Range: $0.86

NL17SZ74MQ1TCG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
84,000 pcs
On Request
84000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NL17SZ74MQ1TCG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Function
Input Capacitance
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Trigger Type
Type
Voltage
View Similar Products (0)

NL17SZ74MQ1TCG Description

Short technical summary and product information.

This ON Semiconductor NL17SZ74MQ1TCG is a single-bit, D-Type flip flop designed for digital logic applications. It features a positive edge trigger and a clock frequency of up to 200 MHz, with a maximum propagation delay of 5ns at 5V and 50pF. The device operates over a wide voltage range of 1.65V to 5.5V and has an operating temperature range of -55°C to 125°C.

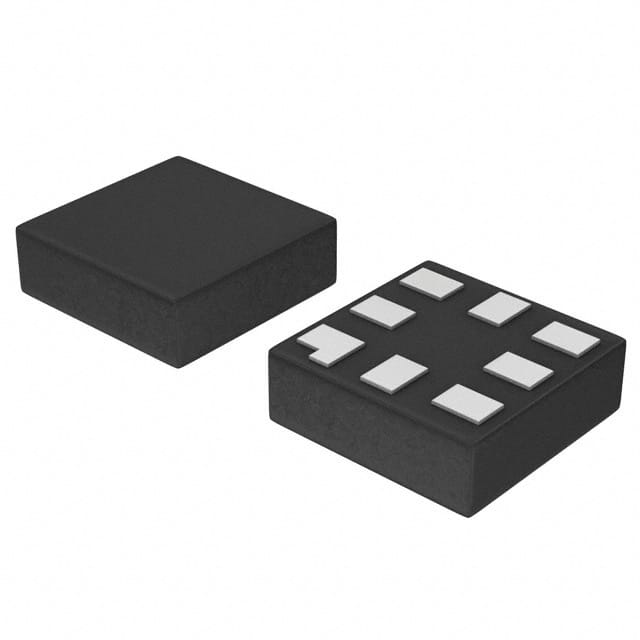

Packaged in an 8-UQFN (1.6x1.6) surface mount configuration, this flip flop is suitable for compact electronic designs. Its complementary output type and low input capacitance of 2.5 pF make it a versatile component for various logic circuits. The function includes Set (Preset) and Reset capabilities, providing control over the flip flop's state.



This component is RoHS3 compliant and has an MSL 1 rating, indicating unlimited shelf life under recommended storage conditions. Its compact size and robust operating parameters make it a reliable choice for digital signal processing and control systems.

NL17SZ74MQ1TCG Quick Information

Product Type: Flip Flop
Canonical Name: On Semiconductor NL17SZ74MQ1TCG D-Type Flip Flop
Subcategory: D-Type

NL17SZ74MQ1TCG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NL17SZ74MQ1TCG Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

NL17SZ74MQ1TCG Features

  • Single D-Type flip flop with Set/Reset.
  • Operates at 200 MHz clock frequency.
  • Wide voltage range from 1.65V to 5.5V.
  • Extended temperature range -55°C to 125°C.
  • Compact 8-UQFN surface mount package.

NL17SZ74MQ1TCG Applications

  • Used in digital logic circuits.
  • Suitable for control systems.
  • Ideal for signal processing.
  • Applicable in embedded systems.

NL17SZ74MQ1TCG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NL17SZ74MQ1TCG?

The operating voltage range is 1.65V to 5.5V.

What is the operating temperature range of this flip-flop?

The operating temperature range is -55°C to 125°C.

What package is the NL17SZ74MQ1TCG available in?

It is available in an 8-UFQFN package with a supplier device package of 8-UQFN (1.6x1.6 mm).

What is the maximum clock frequency of the NL17SZ74MQ1TCG?

The maximum clock frequency is 200 MHz.

What is the propagation delay of this device?

The maximum propagation delay is 5 ns at 5V with a 50 pF load.

Does this flip-flop have complementary outputs?

Yes, it has complementary outputs.
