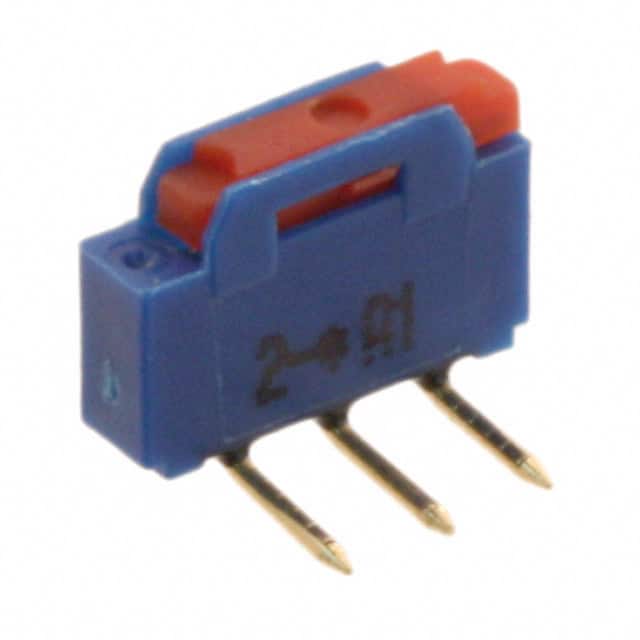

NK236W The APEM Inc. NK236W is a slide switch with SPDT circuitry, rated for 500mA at 12V. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

NK236W

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. NK236W is a slide switch with SPDT circuitry, rated for 500mA at 12V. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 50 pcs
$ Price Range: $0.75

NK236W Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NK236W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Type
Automotive Grade
Circuit
Contact Finish
Contact Material
Contact Timing
Current Rating (Amps)
Features
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

NK236W Description

Short technical summary and product information.

The APEM Inc. NK236W is a slide switch designed for electronic applications. It features SPDT (Single Pole Double Throw) circuitry and is rated for a current of 500mA at 12V.



This switch operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions. The actuator type is flush, and it offers sealed flux protection for enhanced durability.



Mounting is achieved through a through-hole, right-angle configuration, with a termination style of PC pin. The contact material is nickel with a gold finish, ensuring reliable electrical connections. The switch function is On-On.

NK236W Quick Information

Product Type: Slide Switch
Canonical Name: APEM Inc. NK236W Slide Switch
Subcategory: Slide Switch

NK236W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NK236W Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NK236W Features

  • SPDT slide switch for versatile control.
  • Rated for 500mA at 12V DC.
  • Operates from -40°C to 85°C.
  • Sealed for flux protection.
  • Through-hole, right-angle mounting.

NK236W Applications

  • Used in control panels and instrumentation
  • Suitable for environments requiring flux resistance
  • Ideal for electronic devices with toggle switching
  • Applications in industrial and consumer electronics

NK236W FAQs

6 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the NK236W switch?

The NK236W has an SPDT (Single Pole Double Throw) circuit configuration.

What is the current rating of the NK236W switch?

The current rating is 0.5A (500mA).

What is the voltage rating of the NK236W switch?

The voltage rating is 12V.

What is the operating temperature range of the NK236W?

The operating temperature range is from -40°C to 85°C.

What type of mounting does the NK236W use?

It uses through-hole, right-angle mounting with PC pins.

What features does the NK236W switch have?

It features sealed flux protection for durability.
