The NJW4132U2-B-TE2 from Nisshinbo Micro Devices is a switching regulator IC specifically designed for boost converter applications. It supports a wide operating voltage range from 4.5V to 40V, making it versatile for various power supply designs.
This IC utilizes current mode control and features an integrated 45V/1.75A MOSFET. Key features include external clock synchronization, a soft start function with a typical time of 10ms, UVLO (Under Voltage Lockout), Over Current Protection (Hiccup type), and Thermal Shutdown Protection. The oscillating frequency for this 'B' version is typically 700kHz.

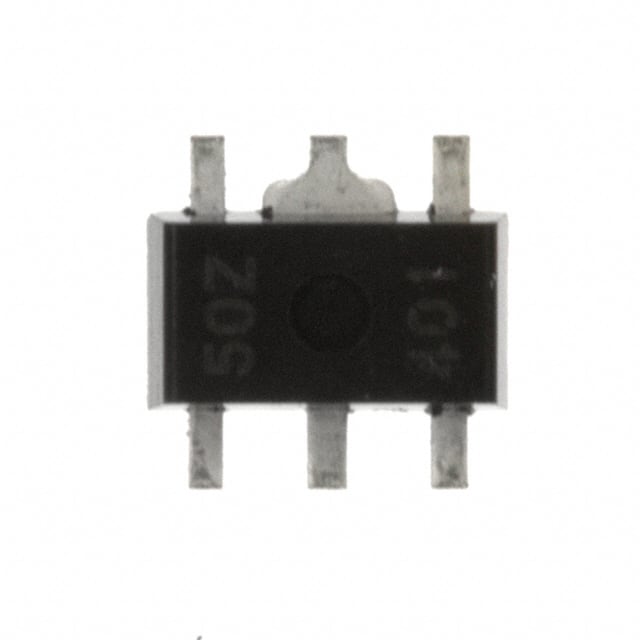

The NJW4132U2-B-TE2 is housed in a SOT-89-5 package, suitable for surface mount applications. Its design allows for downsizing of applications with a few external parts, making it efficient for space-constrained projects. It is well-suited for applications such as car accessories, office automation equipment, and industrial instruments.
This component operates within a temperature range of -40°C to +85°C. The IC provides adjustable output voltage and has a maximum current rating of 2.25A.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 40V.
The maximum switching current is 2.25A.
The operating temperature range is -40°C to +85°C.
The NJW4132U2-B-TE2 comes in a SOT-89-5 surface-mount package.
The typical oscillating frequency is 700kHz.
Yes, it has a soft start function with a typical time of 10ms.
