| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Junction Temperature | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Power Dissipation | |
| Quiescent Current | |
| Reset | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |

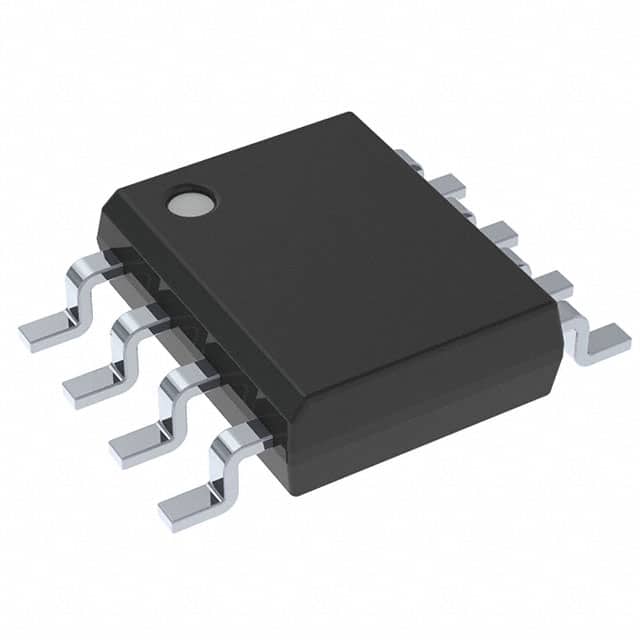

The NJU2103BE-TE1 is a power supply voltage monitoring IC manufactured by Nisshinbo Micro Devices. This supervisor is designed to detect abnormalities such as power supply voltage cutoff or drops, generating a reset signal as needed. It can monitor two systems, including a 5V power supply and an arbitrarily set voltage.
Key specifications include a 4.2V threshold voltage, an operating temperature range of -40°C to 125°C, and a low quiescent current of 280µA typical. The device supports surface mount applications and is housed in an 8-EMP package, with a package/case of 8-SOIC (0.154", 3.90mm Width). Its output type is Open Drain or Open Collector, and it monitors one voltage.
This IC is suitable for industrial equipment, housing and facility equipment, OA equipment, and amusement equipment. It offers improved usability through extended operating temperature and highly accurate parameters, making it a suitable replacement for the MB3771.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.5V to 18V.
8-SOIC (0.154", 3.90mm Width) surface mount package.
-40°C to 125°C.
4.2V with ±1.0% accuracy.
Active low, open drain or open collector.
Yes, verified from datasheet.
280 µA typical.
