| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,257 pcs
|
1257 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request | |
|
975 pcs
|
975 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power Dissipation | |
| Regulator Type | |
| Tape & Reel |

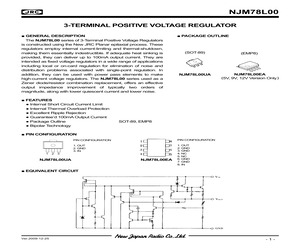

The NJM78L05UA-TE1 from JRC is a fixed positive linear voltage regulator designed for various electronic applications. It provides a stable output voltage of 5V, making it suitable for circuits requiring a consistent power supply.
Key electrical characteristics include a maximum output current of 100mA and a maximum input voltage of up to 30V. The regulator exhibits typical line regulation of 200mV and load regulation of 60mV, ensuring stable performance under varying conditions. Its quiescent current is typically 6mA.
This component is housed in a SOT-89 surface-mount package, featuring flat terminals with a pitch of 1.5mm and a tin bismuth finish. The operating temperature range is from -40°C to 85°C, suitable for industrial environments. The package shape is rectangular, and it is supplied on tape and reel.
The nominal output voltage is 5V, with a maximum of 5.25V and minimum of 4.75V.
The maximum output current is 100mA.
The input voltage range is 7V minimum to 30V maximum.
The operating temperature range is -40°C to 85°C.
The package is SOT-89, surface mount, rectangular shape with 3+Tab pins.
The part is lead-free, with Tin Bismuth terminal finish.
