| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,990 pcs
|
1990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package |
The NJM4741D is a general-purpose operational amplifier manufactured by Nisshinbo Micro Devices Inc. This component integrates four independent operational amplifiers within a single package, making it suitable for applications requiring multiple amplification stages. It operates over a wide supply voltage range, from a minimum of 8V to a maximum of 40V.
Key electrical characteristics include a typical gain bandwidth product of 3.5 MHz and a slew rate of 1.6V/µs, enabling it to handle moderate signal frequencies and transitions. The input offset voltage is typically 1 mV, and the input bias current is 60 nA. The device consumes a quiescent current of 5 mA.

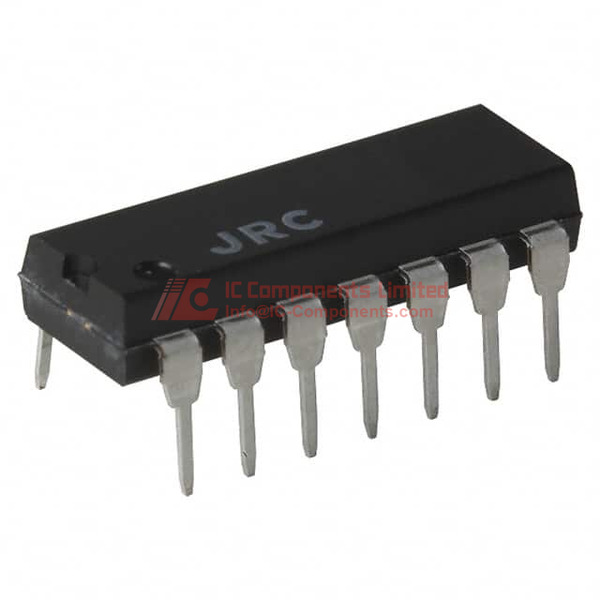

Designed for through-hole mounting, the NJM4741D comes in a standard 14-DIP package. Its operating temperature range is from -40°C to 85°C, ensuring reliable performance in various environmental conditions. This op-amp is suitable for a broad range of analog circuit designs where space and power efficiency are considerations.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.54 | $2.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NJM4741D operates from a minimum supply voltage of 8V to a maximum of 40V.
The typical gain bandwidth product for the NJM4741D is 3.5 MHz.
The slew rate of the NJM4741D is 1.6V/µs.
The NJM4741D contains 4 circuits.
The NJM4741D operates from -40°C to 85°C.
The NJM4741D is available in a 14-DIP package and is designed for through-hole mounting.
