| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
1,472 pcs
|
1472 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Package / Case | |
| SVHC Present | |
| Slew Rate | |
| Supply Voltage | |
| Tape & Reel |

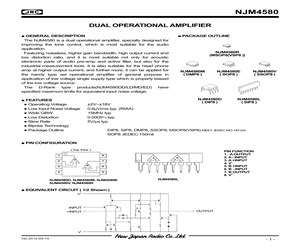

The NJM4580M-TE1 from JRC is a dual operational amplifier offering a 15 MHz gain bandwidth product and a 5 V/µs slew rate. It supports dual supply voltages up to ±18V and operates within an industrial temperature range of -40°C to 85°C.
This op-amp is suitable for various electronic circuits requiring amplification. It features a low input offset voltage of 3 mV maximum and a typical input bias current of 500 nA. The device is housed in a surface-mount DMP-8 package and is supplied on a reel with a factory pack quantity of 2000 units.
Key electrical characteristics include a voltage gain of 110 dB and a common-mode rejection ratio of 80 dB. The operating supply current is typically 9 mA. The NJM4580M-TE1 is designed for applications where reliable performance and specific electrical parameters are critical.
The maximum supply voltage is 18 V for single supply, and up to ±18 V for dual supplies.
The device is housed in a DMP-8 surface-mount package.
The operating temperature range is -40°C to +85°C.
The gain bandwidth product is 15 MHz.
The typical slew rate is 5 V/µs.
The maximum input offset voltage is 3 mV.
The CMRR is 80 dB.
