| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gain | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Power Dissipation | |
| Quiescent Current | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Weight |

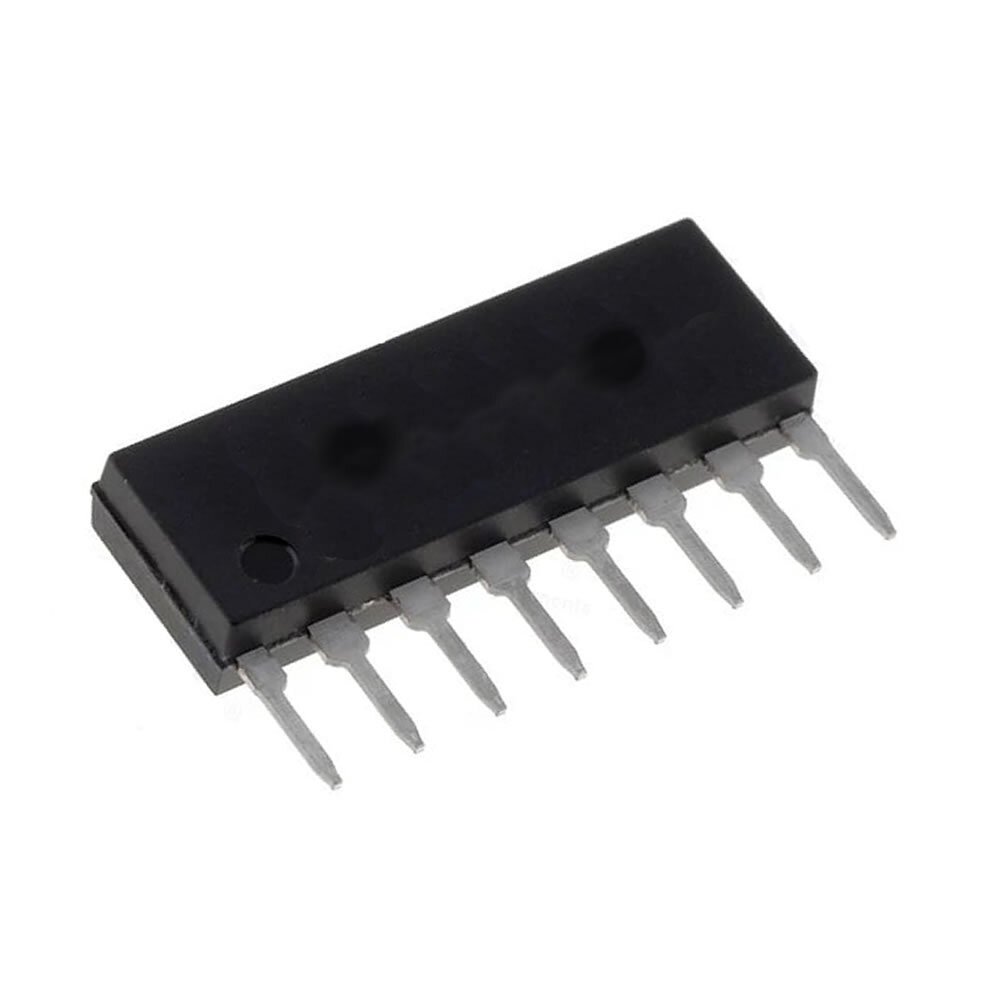

The NJM2903L is an integrated circuit comparator manufactured by JRC. This component is designed for various electronic applications requiring precise signal comparison.
Key electrical specifications include a maximum input offset voltage of 7.0 mV and a maximum input bias current of 250 nA. It operates with a nominal supply voltage of 5.0 V and has a minimum gain of 106. The common mode input range is 3.5 V, and the maximum power dissipation is 800 mW. The response time is 1.5 µs.
This comparator features a wide operating temperature range from -40°C to 85°C. It is housed in a SIP8 package and is designed for through-hole mounting. The component has a weight of 0.01 kg.
The NJM2903L is suitable for applications where reliable signal level detection and comparison are critical. Its specifications make it a versatile choice for embedded systems and control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal supply voltage is 5.0 V.
The NJM2903L comes in a SIP8 through-hole package.
The operating temperature range is -40°C to +85°C.
The maximum input offset voltage is 7.0 mV.
The maximum input bias current is 250 nA.
The response time is 1.5 µs.
The minimum gain is 106.
