| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
993 pcs
|
993 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Type | |
| Voltage |
The NJM2403M(TE1) is a dual general purpose comparator manufactured by Nisshinbo Micro Devices Inc. (formerly JRC). This component is designed for versatile applications, supporting a wide supply voltage range from 2V to 36V for single supplies or ±1V to ±18V for dual supplies.
Key electrical characteristics include a maximum input offset voltage of 10mV at 5V and a maximum input bias current of 0.5µA at 5V. The comparator provides a typical output current of 20mA at 5V and has a low quiescent current of 1.5mA maximum. It operates within a temperature range of -40°C to 85°C.

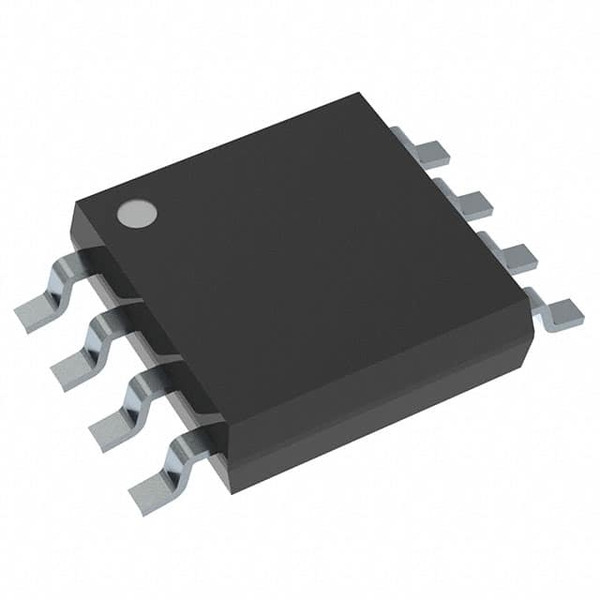

The NJM2403M(TE1) is housed in an 8-SOIC package with a 5.00mm width, suitable for surface mounting. Its open-collector, MOS, and TTL output types offer compatibility with various logic families. This comparator is well-suited for industrial, automotive, and consumer electronics applications where reliable comparison is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2V to 36V for single supply or ±1V to ±18V for dual supply.
The maximum input offset voltage is 10mV at 5V.
The typical output current is 20mA at 5V.
The operating temperature range is -40°C to 85°C.
The NJM2403M(TE1) is in an 8-SOIC package with a 5.00mm width.
