| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
119,835 pcs
|
119835 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Breakdown Voltage (Vbr) | |
| Capacitance @ Frequency | |
| Current | |
| Drain-to-Source Voltage | |
| ESD Protection (Air) | |
| ESD Protection (Contact) | |
| Gate-to-Source Voltage | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage (Vrwm) | |
| SVHC Present | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| capacitance (Typical @ I/O to GND, typical) |
The NIV2161MTTAG is an ESD protection device from On Semiconductor designed for automotive high-speed data lines. It integrates MOSFETs for short-to-battery and short-to-ground protection, making it suitable for USB 2.0/3.0, LVDS, and APIX 2/3 interfaces.
Key electrical specifications include a reverse standoff voltage of 16 V (I/O pin to GND), a breakdown voltage range of 16.5 V to 23 V at 1 mA, and a typical clamping voltage of 26 V. The device offers ultra-low capacitance of 0.40 pF typical (I/O to GND), minimizing signal distortion. It provides ESD protection per IEC 61000-4-2 with ±8 kV contact and ±15 kV air discharge levels.

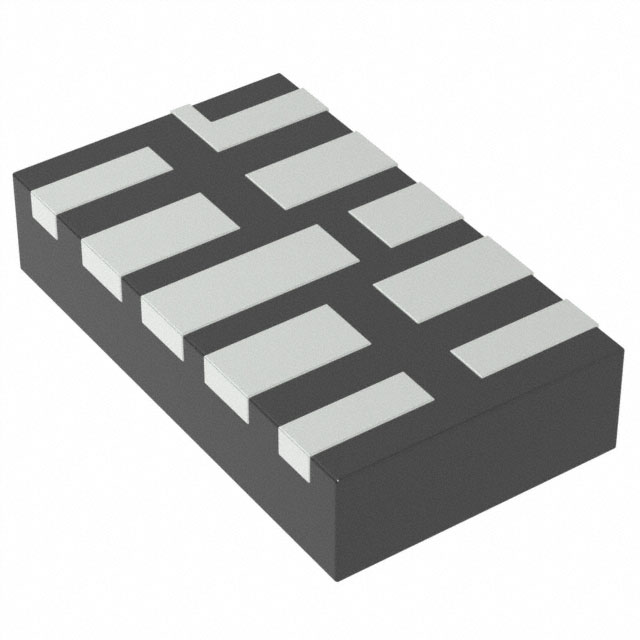

The device is housed in a 10-WDFN package (3.5x2 mm) with surface mount mounting. It is Pb-free, halogen-free/BFR-free, and RoHS compliant. The operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.07 | $1.07 |
| 10+ | $0.69 | $0.69 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.54 | $0.54 |
| 3,000+ | $0.50 | $0.50 |
| 6,000+ | $0.47 | $0.47 |
| 9,000+ | $0.47 | $0.47 |
| 24,000+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage (VRWM) is 16 V (I/O pin to GND).
The breakdown voltage (VBR) is 16.5 V to 23 V at 1 mA.
The typical clamping voltage is 26 V.
The peak pulse current (IPP) is 1 A (8/20 µs).
It is available in a 10-WDFN package (3.5x2 mm) for surface mount.
The typical capacitance is 0.40 pF (I/O to GND).
It provides ±8 kV contact and ±15 kV air discharge per IEC 61000-4-2.
