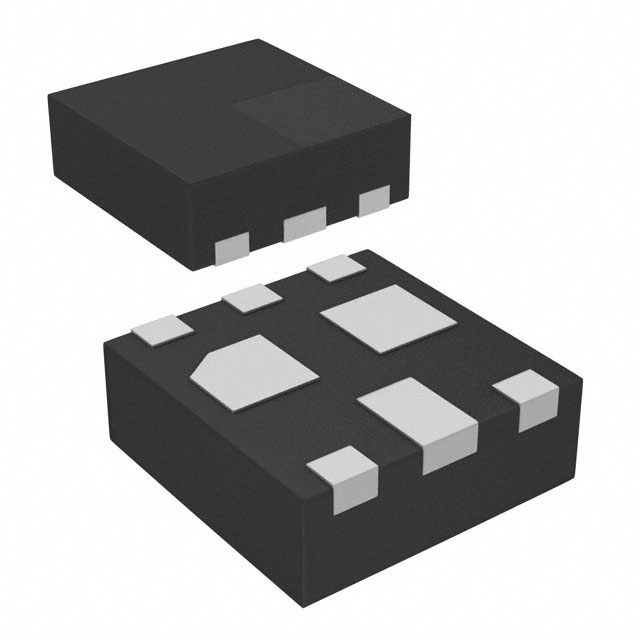

The NIS1161MTTAG is a low capacitance ESD protection device from On Semiconductor, part of the NIx1161 series. It integrates ESD protection diodes with MOSFETs to provide short-to-battery blocking for automotive high-speed data lines.
With an ultra-low typical capacitance of 0.65pF (I/O to GND), this device minimizes signal distortion on high-speed differential lines. It offers ESD protection up to ±8kV contact and ±15kV air per IEC 61000-4-2, and a peak pulse current of 1A (8/20µs). The breakdown voltage ranges from 16.5V to 23V at 1mA, with a clamping voltage of 26V at 1A.
The device is housed in a surface-mount 6-WDFN exposed pad package (2x2mm) and is supplied in tape and reel packaging with a standard quantity of 3000 pieces. It is RoHS3 compliant, Pb-free, and halogen-free. The flow-through style package simplifies PCB layout for matched trace lengths.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.22 | $2.22 |
| 10+ | $1.42 | $1.42 |
| 100+ | $0.96 | $0.96 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.70 | $0.70 |
| 3,000+ | $0.58 | $0.58 |
| 6,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse working voltage is 16V.
The breakdown voltage ranges from 16.5V to 23V at a test current of 1 mA.
The clamping voltage is 26V typical at a peak pulse current of 1A (8/20µs waveform).
The peak pulse current is 1A for an 8/20µs waveform.
It is available in a 6-WDFN exposed pad surface mount package (2x2mm).
It provides ±8kV contact and ±15kV air discharge protection per IEC 61000-4-2.
It is designed for automotive high-speed data lines and HDMI interfaces.
