| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

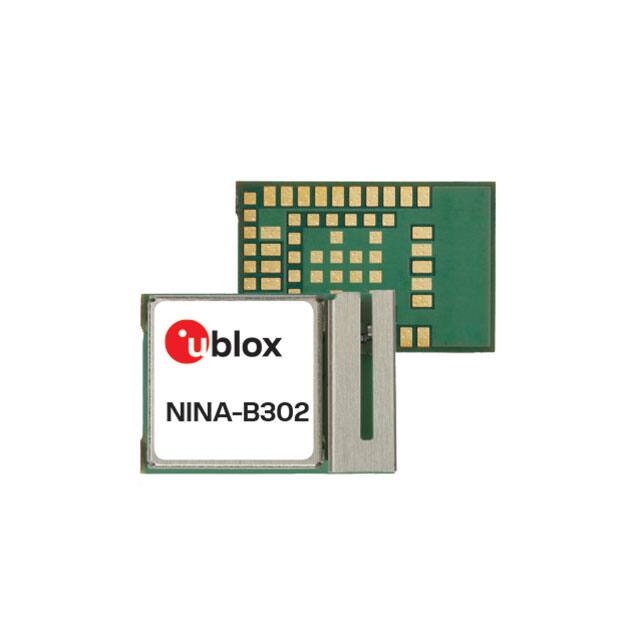

The u-blox NINA-B302-00B is a surface-mount RF transceiver module designed for Bluetooth v5.0 applications. It operates in the 2.4GHz frequency band, offering a data rate of up to 2Mbps and a transmission output power of 10dBm. The module features an integrated chip antenna and utilizes the nRF52840 IC.
Key electrical specifications include a receiving current of 4.8mA and a transmitting current of 14.1mA, with a supply voltage range of 1.7V to 3.6V. The operating temperature range is -40°C to 85°C. It supports various serial interfaces such as ADC, GPIO, I²C, I²S, PWM, SPI, UART, and USB.
This module comes in a 55-SMD module package and has a memory size of 1MB Flash and 256kB RAM. Its modulation type is GFSK. The NINA-B302-00B is suitable for a wide range of wireless communication applications requiring reliable Bluetooth connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.7V to 3.6V.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
The data rate is 2Mbps.
Available serial interfaces include ADC, GPIO, I²C, I²S, PWM, SPI, UART, and USB.
