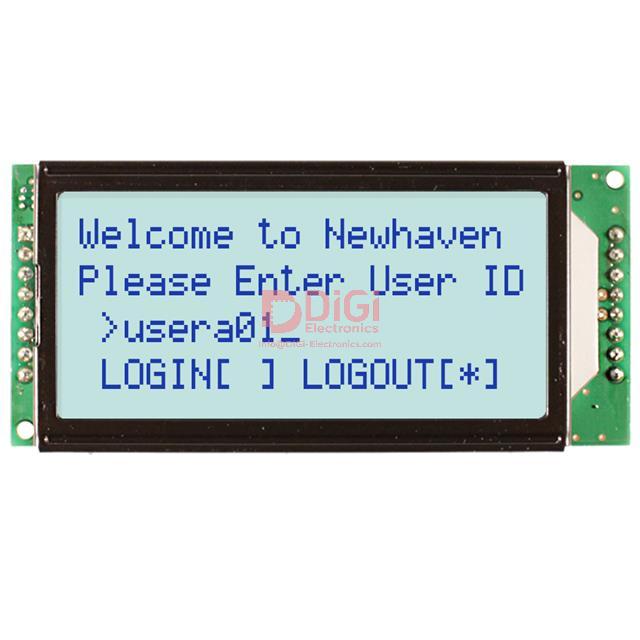

The Newhaven Display NHD-0420H1Z-FSW-GBW-33V3 is a character liquid crystal display module offering a 4-line by 20-character format. It features a transflective display type and a white LED backlight, providing clear visibility in various lighting conditions.
This module utilizes an STN-Super-Twisted Nematic display technology and is built with an integrated ST7066U controller. It requires a 3.3V power supply for logic operations and a 3.0V supply for the backlight. The operating temperature range is from -20°C to +70°C, making it suitable for a wide range of applications.
Key electrical characteristics include a supply current of 0.5mA to 2.5mA and a contrast voltage range of 3.1V to 3.5V. The module supports a 1/16 duty cycle and 1/4 bias. Its dimensions are 79.00mm x 36.00mm x 13.00mm, and it comes in a bulk package.
This LCD module is designed for applications requiring a straightforward alphanumeric display. Its transflective nature allows for both indoor and outdoor readability, and the white LED backlight ensures good contrast. The 3.3V operation makes it compatible with many microcontroller systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.0 to 3.6 V, with a typical value of 3.3 V.
The operating temperature range is -20 to +70 °C.
It uses a Super-Twisted Nematic (STN) transflective display.
The built-in controller is the ST7066U.
The display format is 20 characters by 4 lines.
The supply current is 0.5 to 2.5 mA, with a typical value of 1.5 mA at 25 °C and 3.3 V.
