Mfr Part #:

NHD-0216CW-AW3

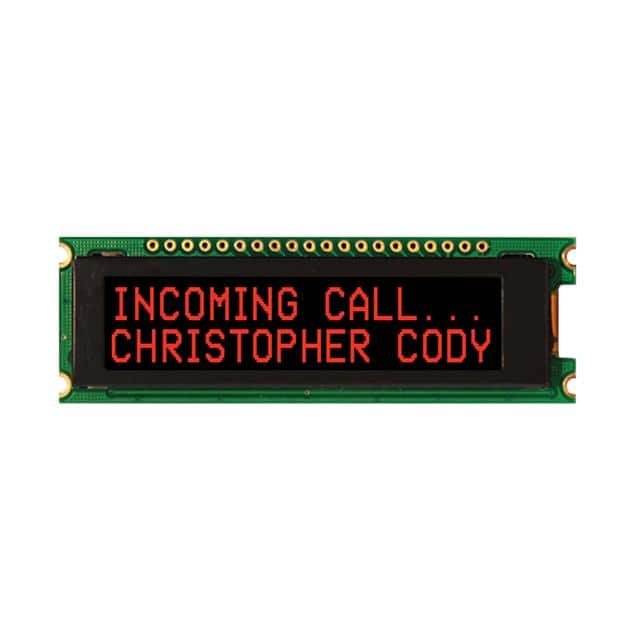

Name: NHD-0216CW-AW3
Brand: Newhaven Display
SKU: NHD-0216CW-AW3

Mfr Name: Newhaven Display

Description:

OLED MODULE 32DIG 16 X 2

Stock on Request

NHD-0216CW-AW3 Description

Short technical summary and product information.

OLED MODULE 32DIG 16 X 2

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	Newhaven Display
Background Color	Black
Character Format	5 x 8 Dots
Character Size	5.67mm H x 2.97mm W
Controller Type	US2066
Display Format	16 x 2
Display Type	OLED
Dot Size	0.57mm W x 0.67mm H
Interface	Parallel, 8-Bit, I²C, SPI
Number of Characters	32
Operating Temperature	-40°C ~ 85°C
Outline L x W x H	76.00mm x 24.50mm x 5.00mm
Text Color	White
Viewing Area	56.22mm L x 13.52mm W
Voltage	2.4V ~ 5.5V
