| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Background Color | |
| Backlight | |
| Character Format | |
| Character Size | |
| Controller Type | |
| Display Format | |
| Display Mode | |
| Display Type | |
| Dot Size | |
| Industrial Grade | |
| Interface | |
| Medical Grade | |
| Military Grade | |
| Number of Characters | |
| Operating Temperature | |
| Outline L x W x H | |
| Tape & Reel | |
| Text Color | |
| Viewing Area | |
| Voltage |

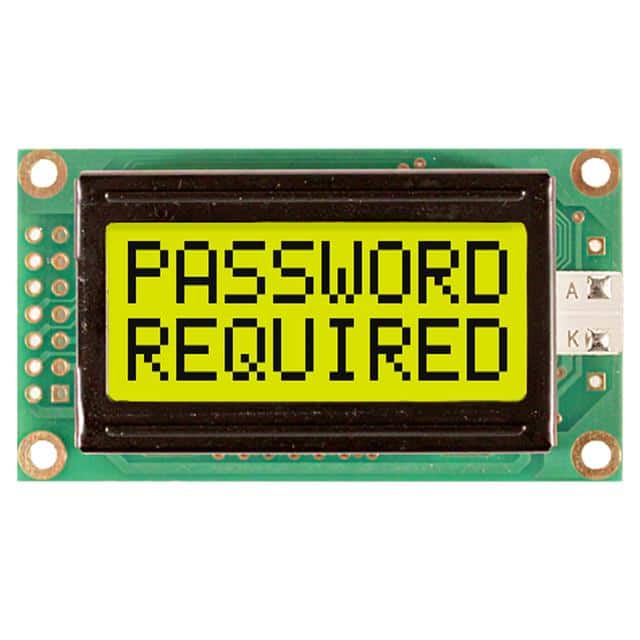

The Newhaven Display NHD-0208BZ-FL-GBW is a character LCD module designed for clear visual output. It features an 8x2 display format, capable of showing 16 characters in total, with a character size of 5.56mm height and 2.96mm width. The module utilizes STN - Super-Twisted Nematic technology for its display type and offers a transflective display mode.
This module is equipped with a yellow/green LED backlight for enhanced visibility. The operating temperature range is from -20°C to 70°C, making it suitable for various environmental conditions. It requires an operating voltage between 4.7V and 5.5V and uses a parallel interface for communication. The controller type is SPLC780D or ST7066U.
The physical dimensions of the module are 58.00mm in length, 32.00mm in width, and 13.00mm in height, with a viewing area of 38.00mm L x 16.00mm W. The dot size is 0.56mm W x 0.66mm H. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The display format is 8 x 2 characters.
The operating temperature range is -20°C to 70°C.
The module requires an operating voltage between 4.7V and 5.5V.
Yes, it features an LED backlight in yellow/green.
The module is RoHS3 Compliant.
