Mfr Part #:

NHD-0208AZ-RN-GBW

Name: NHD-0208AZ-RN-GBW
Brand: Newhaven Display
SKU: NHD-0208AZ-RN-GBW

Mfr Name: Newhaven Display

Description:

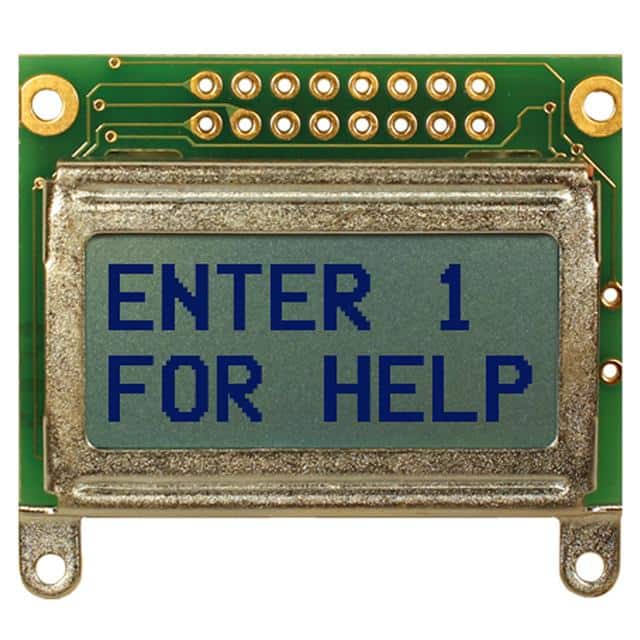

LCD MOD 16 DIG 8 X 2 REFLECTIVE

Stock on Request

NHD-0208AZ-RN-GBW Description

Short technical summary and product information.

LCD MOD 16 DIG 8 X 2 REFLECTIVE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	Newhaven Display
Background Color	Gray
Backlight	Without Backlight
Character Format	5 x 8 Dots
Character Size	4.75mm H x 2.95mm W
Controller Type	SPLC780D OR ST7066U
Display Format	8 x 2
Display Mode	Reflective
Display Type	STN - Super-Twisted Nematic
Dot Size	0.55mm W x 0.55mm H
Interface	Parallel
Number of Characters	16
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	40.00mm x 35.40mm x 13.50mm
Text Color	Blue
Viewing Area	30.40mm L x 13.90mm W
Voltage	4.5V ~ 5.5V
