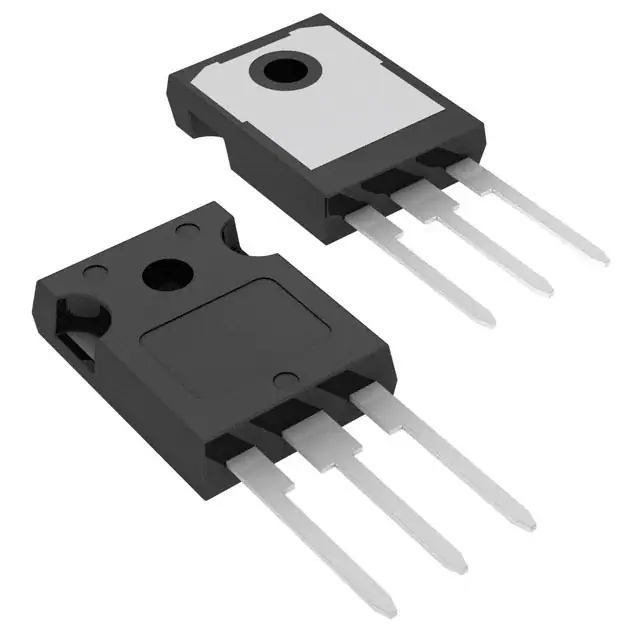

The NGTB40N65IHL2WG from On Semiconductor is an Insulated Gate Bipolar Transistor (IGBT) utilizing Trench Field Stop technology. This construction offers superior performance with low on-state voltage and minimal switching loss, making it well-suited for applications like inductive heating and soft switching.
Key electrical specifications include a collector-emitter voltage of 650V and a continuous collector current of 80A at 25°C, derating to 40A at 100°C. The device can handle pulsed collector currents up to 160A. It features a low saturation voltage of 2.2V at 15V gate-emitter voltage and 40A collector current, and a maximum power dissipation of 300W at 25°C.
The IGBT operates within a junction temperature range of -55°C to +175°C. It is housed in a TO-247-3 package and designed for through-hole mounting. The device also includes a co-packaged soft and fast free-wheeling diode with a low forward voltage.
This IGBT is optimized for low losses in IH cooker applications and provides a robust and cost-effective solution for demanding switching requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (breakdown voltage) for the NGTB40N65IHL2WG is 650 V.
The continuous collector current is rated at 80 A at 25°C and 40 A at 100°C.
The maximum power dissipation is 300 W at 25°C and 150 W at 100°C.
The operating junction temperature range is -55°C to +175°C.
The NGTB40N65IHL2WG is available in a TO-247-3 package for through-hole mounting.
Yes, the NGTB40N65IHL2WG is RoHS3 Compliant.
