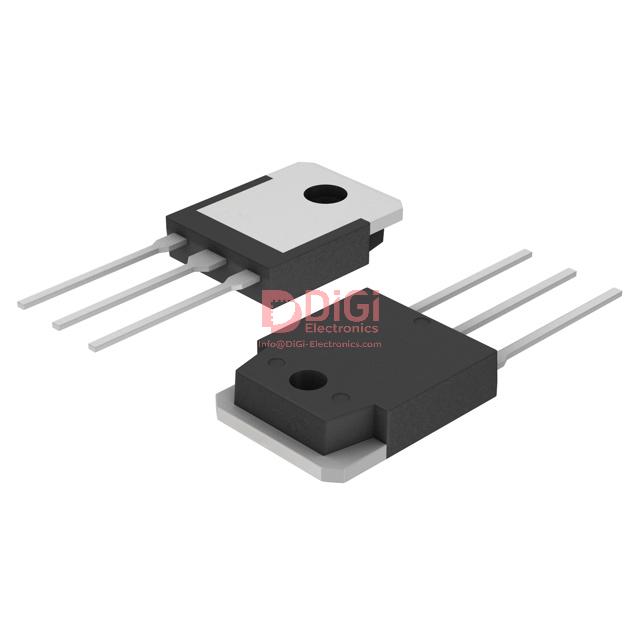

NGTB15N120IHRWG The On Semiconductor NGTB15N120IHRWG is an IGBT transistor designed for demanding switching applications. It features a 1200V collector-emitter voltage and 30A collector current.
Mfr Part #:

NGTB15N120IHRWG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NGTB15N120IHRWG is an IGBT transistor designed for demanding switching applications. It features a 1200V collector-emitter voltage and 30A collector current.
✓ Total Stock: 1,680 pcs
$ Price Range: $0.99

NGTB15N120IHRWG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,680 pcs
On Request
1680 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NGTB15N120IHRWG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Gate Charge
IGBT Type
Input Capacitance
Input Type
Mounting Type
Operating Temperature
Power
Storage Temperature
Supplier Device Package
Switching Energy
Td (on
Test Condition
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

NGTB15N120IHRWG Description

Short technical summary and product information.

The NGTB15N120IHRWG from On Semiconductor is an Insulated Gate Bipolar Transistor (IGBT) featuring a Trench Field Stop construction. This design offers superior performance in switching applications with low on-state voltage and minimal switching loss, making it well-suited for resonant or soft switching applications.



Key electrical specifications include a collector-emitter voltage of 1200V and a continuous collector current of 30A at 25°C, derating to 15A at 100°C. The device has a maximum power dissipation of 333W at 25°C. It operates within a junction temperature range of -40°C to +175°C.



This IGBT is packaged in a TO-247-3 through-hole configuration. Its features include extremely efficient trench with Fieldstop technology, low switching loss, and optimization for low case temperature in applications like IH cookers. Typical applications include inductive heating, consumer appliances, and soft switching circuits.

NGTB15N120IHRWG Quick Information

Product Type: IGBT Transistor
Canonical Name: NGTB15N120IHRWG IGBT with Monolithic Free Wheeling Diode
Subcategory: Single IGBT

NGTB15N120IHRWG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NGTB15N120IHRWG Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NGTB15N120IHRWG Features

  • Extremely efficient Trench with Fieldstop Technology.
  • Low switching loss reduces system power dissipation.
  • Optimized for low case temperature applications.
  • Reliable and cost effective single die solution.
  • Pb-Free device for environmental compliance.

NGTB15N120IHRWG Applications

  • Suitable for high-voltage switching applications.
  • Used in inductive heating systems.
  • Ideal for consumer appliance power control.
  • Applicable in soft switching power supplies.
  • Suitable for resonant circuit switching.

NGTB15N120IHRWG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the NGTB15N120IHRWG?

The maximum collector-emitter voltage is 1200 V.

What is the continuous collector current rating at 25°C?

The continuous collector current rating at 25°C is 30 A.

What is the typical collector-emitter saturation voltage at 15V and 15A?

The typical collector-emitter saturation voltage is 2.10 V.

What is the operating junction temperature range?

The operating junction temperature range is -40°C to +175°C.

What package type is the NGTB15N120IHRWG supplied in?

The NGTB15N120IHRWG is supplied in a TO-247-3 package.

Is the NGTB15N120IHRWG a RoHS compliant device?

Yes, the NGTB15N120IHRWG is RoHS3 Compliant.

What are the typical applications for this IGBT?

Typical applications include inductive heating, consumer appliances, and soft switching.
