| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

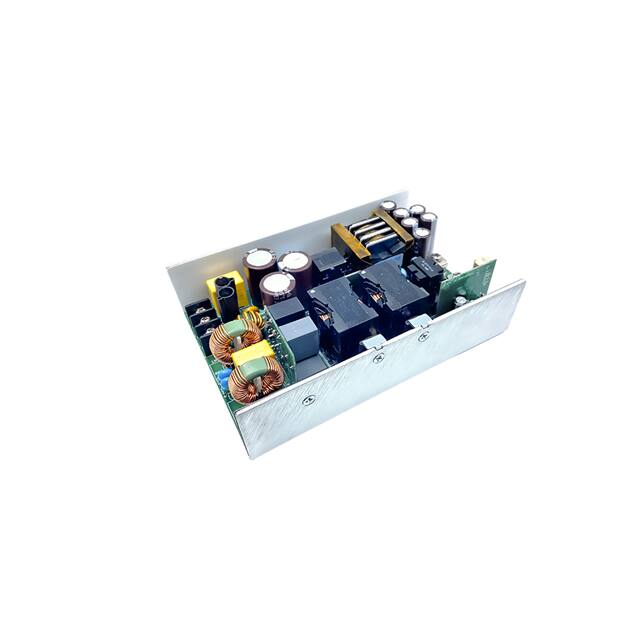

The NGB660S15K is an AC-DC converter from SL Power Electronics delivering a 15V output at 368W. It accepts a universal input voltage range of 85 to 264 VAC at 47 to 63 Hz, with a maximum input current of 7.0 A at 115 VAC and 3.5 A at 230 VAC. The converter achieves a typical efficiency greater than 90% and consumes less than 0.5 W under no load.
Designed with medical-grade safety in mind, the NGB660S15K provides 2 MOPP (Means of Patient Protection) isolation with 4500 VAC between input and output, and 1500 VAC between input/ground and output/ground. Patient leakage current is limited to less than 100 μA under normal conditions and less than 500 μA under single fault condition. Inrush current is limited to 26.4 A maximum at cold start, not exceeding 40 A peak. Input fuses (6.3 A, 250 VAC) are provided in both line and neutral.
This converter is suitable for medical, industrial, and test equipment applications requiring high isolation and low leakage currents. No additional package or mounting specifications are available from the provided data.
85 to 264 VAC.
47 to 63 Hz.
Greater than 90% typical.
4500 VAC (2 MOPP).
Less than 100 μA at 264 VAC, 60 Hz, NC.
7.0 A.
Yes, maximum inrush current is 26.4 A at cold start @ 264 VAC input, not exceeding 40 A peak.
