| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | 0049+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

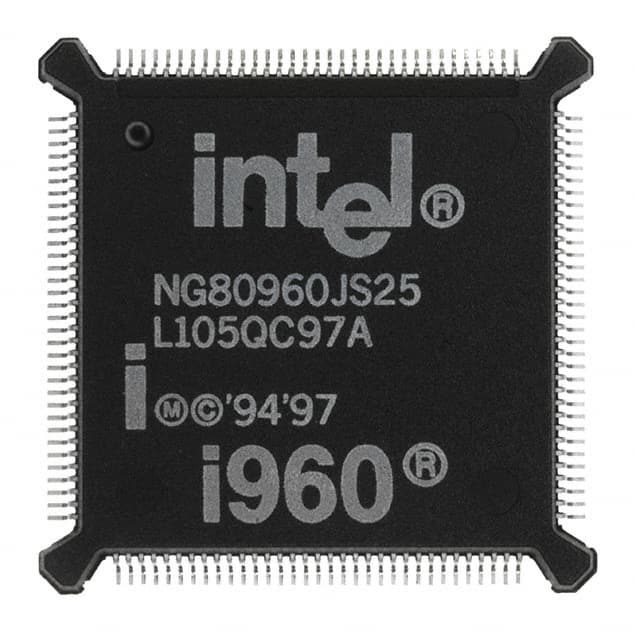

The Intel NG80960JS25 is a 32-bit embedded microprocessor based on the i960 core, operating at a speed of 25MHz. It requires a 3.3V operating voltage and is suitable for surface mount applications, packaged in a 132-QFP.
This microprocessor features a high-performance embedded architecture with features like a 2 Kbyte instruction cache and a 1 Kbyte data cache. It also includes on-chip data RAM for critical variable storage and supports selectable bus widths of 8-, 16-, or 32-bit. The device is compatible with IEEE 1149.1 (JTAG) boundary scan.
Available in various package types including 132-Lead Pin Grid Array (PGA), 132-Lead Plastic Quad Flat Pack (PQFP), and 196-Ball Mini Plastic Ball Grid Array (MPBGA), the NG80960JS25 is designed for embedded systems requiring a robust processing core. Its operating temperature range is 0°C to 100°C (TC).
| Qty | Low | High |
|---|---|---|
| 1+ | $11.19 | $11.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3 V.
The speed is 25 MHz.
The NG80960JS25 is available in 132-QFP, 132-BQFP Bumpered, 132-Lead Pin Grid Array (PGA), 132-Lead Plastic Quad Flat Pack (PQFP), and 196-Ball Mini Plastic Ball Grid Array (MPBGA) packages.
The operating temperature range is 0°C to 100°C (TC).
No, the NG80960JS25 does not have graphics acceleration.
The instruction cache size is 2 Kbyte.
The data cache size is 1 Kbyte.
