| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,700 pcs
|
4700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Composition | |
| Features | |
| Maximum Operating Voltage | |
| Maximum Resistance Change | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Rated Dissipation | |
| Resistance | |
| Resistance Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance |

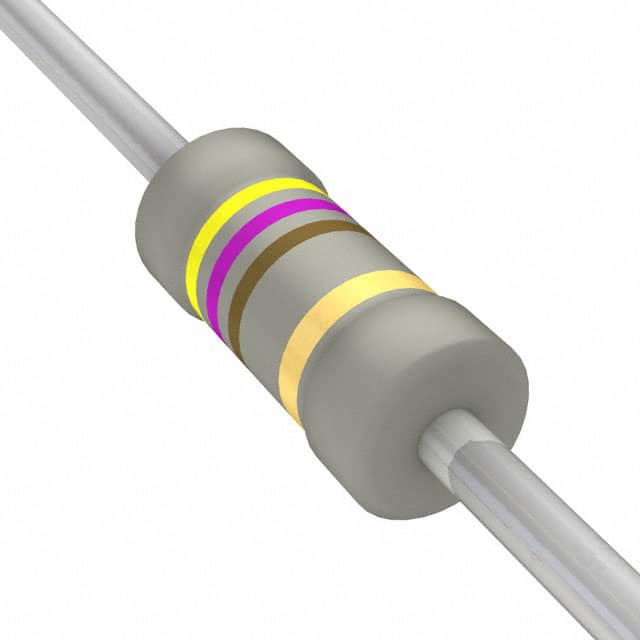

This Vishay Dale NFR25H0004700JR500 is a fusible, non-flammable metal film resistor designed for through-hole mounting. It has a resistance value of 470 Ohms with a tolerance of ±5% and a power rating of 0.5W. The resistor operates within a temperature range of -55°C to 155°C and features a low temperature coefficient of ±100ppm/°C.
The construction involves a homogeneous metal alloy film deposited on a ceramic body, with tinned copper leads welded to end-caps. A gray, flame-retardant lacquer coating provides protection. The encapsulant is resistant to cleaning solvents per IEC 60068-2-45. This series offers overload protection without the risk of fire and is suitable for applications in audio and video.
The resistor has a size of 0.098" Dia x 0.256" L (2.50mm x 6.50mm) and is supplied in an axial package. It meets basic specifications according to IEC 60115-1 and has a climatic category of 55/155/56.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 Ohms.
The power rating is 0.5W.
The tolerance is ±5%.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The maximum operating voltage is 350V.
The resistor is supplied in an axial package.
