| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 1202+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance |

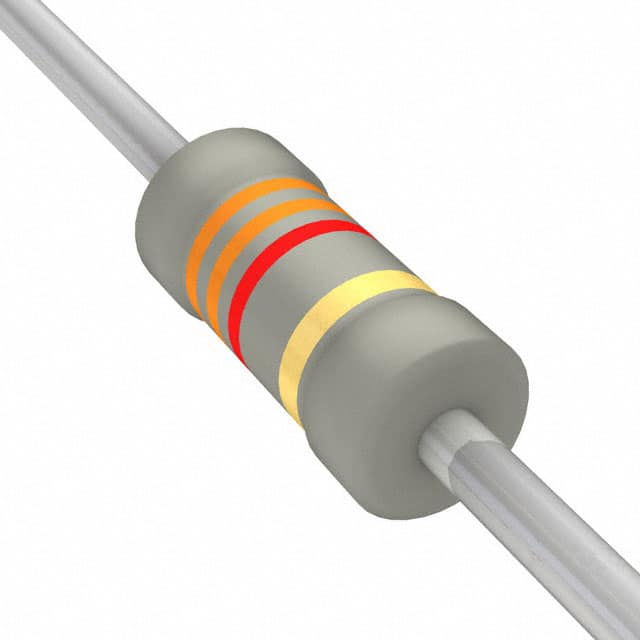

This Vishay Dale NFR25H0003301JR500 is a high-quality fusible, non-flammable metal film resistor. It is constructed with a homogeneous metal alloy film deposited on a ceramic body, featuring tinned electrolytic copper connecting wires. The resistor is coated with a gray, flame-retardant lacquer for protection.
Key electrical specifications include a resistance of 3.3 kΩ, a tolerance of ±5%, and a rated power dissipation of 0.5W. The operating temperature range is -55°C to 155°C, with a maximum operating voltage of 350V. The temperature coefficient is ±100 ppm/K.
Designed for through-hole applications, this resistor is suitable for audio and video applications. Its construction provides overload protection without the risk of fire. The pure tin plating ensures compatibility with both lead-free and lead-containing soldering processes.
The NFR25H series resistors are available in axial packaging, with options for tape and reel or ammopack. The dimensions are 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3.3 kΩ.
The power rating is 0.5W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The maximum operating voltage is 350V.
The temperature coefficient is ±100 ppm/K.
It is available in axial packaging, with options for tape and reel or ammopack.
