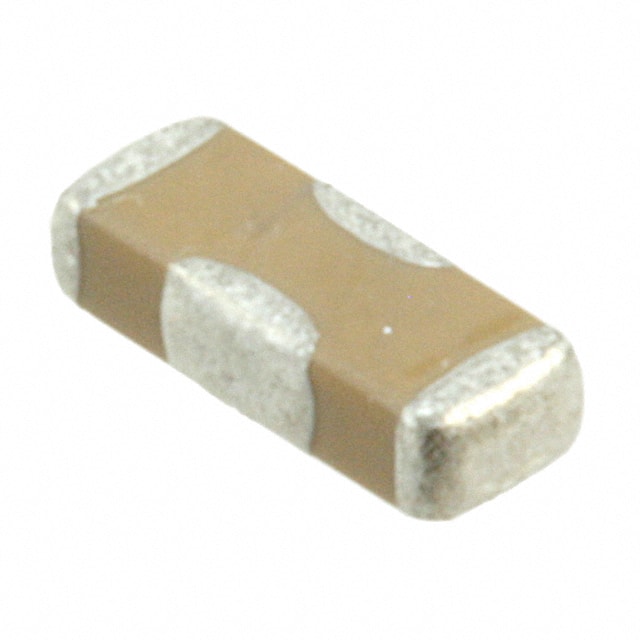

NFM3DPC223R1H3L The Murata NFM3DPC223R1H3L is a feed-through capacitor designed for general electronic equipment. It offers a capacitance of 0.022 µF and a voltage rating of 50V.
Mfr Part #:

NFM3DPC223R1H3L

Available from 3 distributors
Mfr Name: Murata
Murata
The Murata NFM3DPC223R1H3L is a feed-through capacitor designed for general electronic equipment. It offers a capacitance of 0.022 µF and a voltage rating of 50V.
✓ Total Stock: 33,157 pcs
$ Price Range: $0.10

NFM3DPC223R1H3L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
23,742 pcs
On Request
23742 pcs On Request 1 On Request On Request 19+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
5,415 pcs
On Request
5415 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 06+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NFM3DPC223R1H3L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Current
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Height
Height (Max)
Industrial Grade
Insulation Resistance
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Tolerance
Voltage
Width
Withstanding Voltage
View Similar Products (0)

NFM3DPC223R1H3L Description

Short technical summary and product information.

The Murata NFM3DPC223R1H3L is a large current, 3-terminal, low ESL chip multilayer ceramic capacitor, also known as EMIFIL. It is designed for general electronic equipment applications.



This component features a capacitance of 0.022 µF with a tolerance of -20% to +50% and a DC rated voltage of 50V. It operates within a temperature range of -55°C to 125°C. The capacitor has a low DC resistance (DCR) of 50mΩ maximum at 100mA and a rated current of 2A at 85°C.



Packaged in a 1205 (3212 Metric) surface mount case, the NFM3DPC223R1H3L has dimensions of 3.20mm x 1.25mm and a height of 0.90mm. It is supplied on a 180mm reel with 4000 pieces per reel.



Key electrical characteristics include an insulation resistance of 1000MΩ minimum at 50V DC and a withstanding voltage test of 125V DC for 2 minutes.

NFM3DPC223R1H3L Quick Information

Product Type: Feed Through Capacitor
Canonical Name: Murata NFM3DPC223R1H3L Feed Through Capacitor
Subcategory: Feed Through

NFM3DPC223R1H3L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NFM3DPC223R1H3L Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

NFM3DPC223R1H3L Features

  • 0.022 µF capacitance, 50V DC rated voltage.
  • Low ESL, 3-terminal chip capacitor design.
  • Rated for 2A current at 85°C operation.
  • 1205 (3212 Metric) surface mount package.
  • Wide operating temperature range of -55°C to 125°C.

NFM3DPC223R1H3L Applications

  • Ideal for EMI/RFI filtering applications.
  • Suitable for general electronic equipment.
  • Used in power supply line filtering.
  • Effective for signal line noise suppression.

NFM3DPC223R1H3L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the NFM3DPC223R1H3L capacitor?

The capacitance is 0.022 µF.

What is the DC voltage rating for this Murata capacitor?

The DC rated voltage is 50V.

What is the operating temperature range for the NFM3DPC223R1H3L?

The operating temperature range is -55°C to 125°C.

What is the package type for this feed-through capacitor?

It is a 1205 (3212 Metric) surface mount package.

What is the maximum DC resistance (DCR) of this capacitor?

The maximum DC resistance is 50mΩ.

What is the rated current for the NFM3DPC223R1H3L at 85°C?

The rated current is 2A at 85°C.
