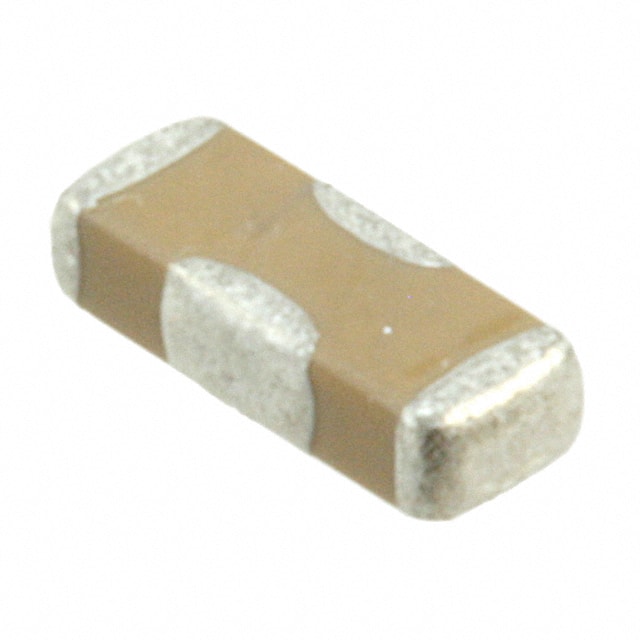

NFM3DCC471R1H3L The Murata NFM3DCC471R1H3L is a 470pF, 50V feed-through capacitor in a 1205 package. It is designed for surface mount applications and operates across a wide temperature range.
Mfr Part #:

NFM3DCC471R1H3L

Available from 4 distributors
Mfr Name: Murata
Murata
The Murata NFM3DCC471R1H3L is a 470pF, 50V feed-through capacitor in a 1205 package. It is designed for surface mount applications and operates across a wide temperature range.
✓ Total Stock: 18,286 pcs
$ Price Range: $0.10

NFM3DCC471R1H3L Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NFM3DCC471R1H3L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Current
Current Rating
DC Resistance
Height (Max)
Insulation Resistance
Length
Mounting Type
Operating Temperature
Tape & Reel
Tolerance
Voltage
Width
View Similar Products (0)

NFM3DCC471R1H3L Description

Short technical summary and product information.

The Murata NFM3DCC471R1H3L is a 3-terminal low ESL chip multilayer ceramic capacitor, also known as EMIFIL. It offers a capacitance of 470 pF with a tolerance of -20% to +50% and a DC rated voltage of 50V.



This component is designed for surface mount applications and comes in a 1205 (3212 Metric) package with 3 PC pads. It has a maximum height of 0.90mm. The operating and storage temperature range is -55°C to 125°C.



Key electrical characteristics include a current rating of 300mA(DC), a maximum DC resistance of 300mΩ, and a minimum insulation resistance of 1000MΩ(DC). The capacitor is supplied on a 180mm reel with a standard package quantity of 4000 pieces.



This feed-through capacitor is suitable for general electronic equipment applications where noise filtering is required.

NFM3DCC471R1H3L Quick Information

Product Type: Feed Through Capacitor
Canonical Name: Murata NFM3DCC471R1H3L 3 Terminals Low ESL Chip Multilayer Ceramic Capacitor
Subcategory: Feed Through

NFM3DCC471R1H3L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NFM3DCC471R1H3L Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

NFM3DCC471R1H3L Features

  • 3 terminals low ESL chip multilayer ceramic capacitor.
  • Capacitance value of 470 pF with 50V DC rating.
  • Compact 1205 (3212 Metric) surface mount package.
  • Wide operating temperature range from -55°C to 125°C.
  • Current rating of 300mA(DC) and low DC resistance.

NFM3DCC471R1H3L Applications

  • Ideal for noise filtering in electronic equipment.
  • Suitable for general electronic applications.
  • Used in circuits requiring low ESL components.
  • Designed for surface mount assembly processes.

NFM3DCC471R1H3L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the Murata NFM3DCC471R1H3L capacitor?

The capacitance of the NFM3DCC471R1H3L is 470 pF.

What is the DC rated voltage for the NFM3DCC471R1H3L capacitor?

The DC rated voltage for this capacitor is 50V.

What is the operating temperature range of the NFM3DCC471R1H3L?

The operating temperature range is -55°C to 125°C.

What package type is the Murata NFM3DCC471R1H3L capacitor?

The capacitor is supplied in a 1205 (3212 Metric), 3 PC Pad package.

What is the current rating for the NFM3DCC471R1H3L?

The current rating is 300mA(DC).
