| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,080 pcs
|
31080 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
651 pcs
|
651 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance Tolerance | |
| Current | |
| DC Rated Voltage | |
| DC Resistance (DCR) (Max) | |
| DC Resistance (Maximum @ Measured with 100 mA max.) | |
| DC Resistance (Maximum) | |
| Electrode Width | |
| Height | |
| Height (Max) | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Width | |
| Thickness | |
| Tolerance | |
| Voltage | |
| Width | |
| Withstanding Voltage | |
| capacitance (Nominal @ 1±0.1 kHz, 1±0.2 V(rms) |

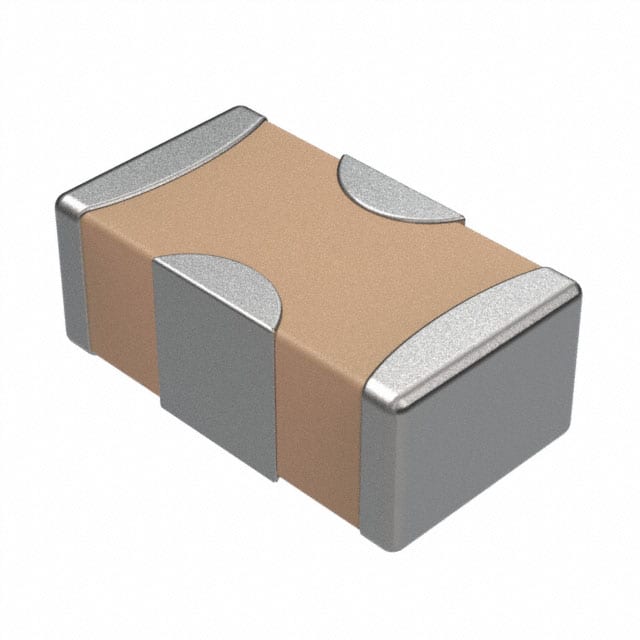

This Murata NFM18CC223R1C3D is a 3-terminal low ESL chip multilayer ceramic capacitor, also known as an EMIFIL, designed for general electronic equipment. It features a nominal capacitance of 0.022 µF with a tolerance of ±20% and a DC rated voltage of 16V.
The capacitor operates within a temperature range of -55°C to 125°C and has a rated current of 1A. Its DC resistance (DCR) is a maximum of 50mΩ. The component is housed in a compact 0603 (1608 Metric) package with 3 PC pads, suitable for surface mounting.
Key electrical characteristics include an insulation resistance of 1000MΩ minimum. The physical dimensions are 1.60mm in length, 0.80mm in width, and 0.60mm in thickness. This component is supplied on a 180mm reel with a standard package quantity of 4000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.022 µF.
The DC rated voltage is 16V.
The operating temperature range is -55°C to 125°C.
It is a 0603 (1608 Metric) package with 3 PC pads.
