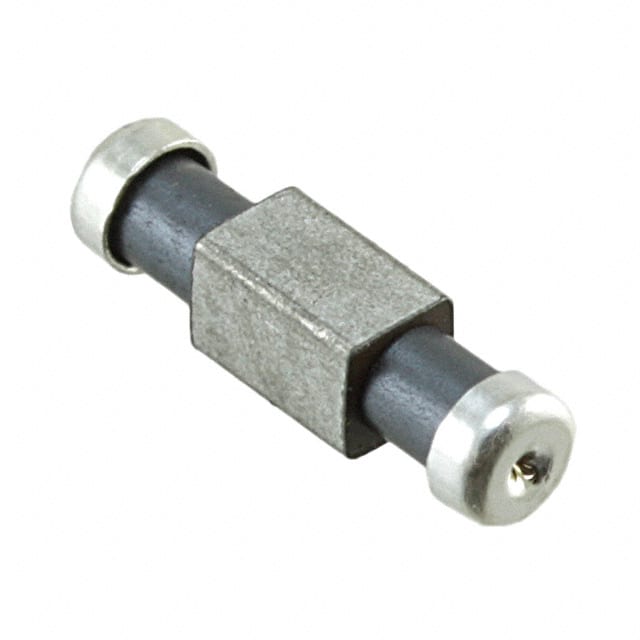

NFE61HT102F2A9L The Murata NFE61HT102F2A9L is an LC Combined Type for Large Current filter designed for automotive applications. It offers a capacitance of 1000pF and a voltage rating of 100V.
Mfr Part #:

NFE61HT102F2A9L

Available from 4 distributors
Mfr Name: Murata
Murata
The Murata NFE61HT102F2A9L is an LC Combined Type for Large Current filter designed for automotive applications. It offers a capacitance of 1000pF and a voltage rating of 100V.
✓ Total Stock: 4,660 pcs
$ Price Range: $0.99

NFE61HT102F2A9L Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NFE61HT102F2A9L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Automotive Grade
Current
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Rated Current
Rated Voltage
Storage Temperature
Tape & Reel
Technology
Termination Style
Type
Values
Voltage
Width
View Similar Products (0)

NFE61HT102F2A9L Description

Short technical summary and product information.

The Murata NFE61HT102F2A9L is a Chip EMIFIL LC Combined Type for Large Current, designed for automotive electronics and compliant with AEC-Q200 standards. This filter component features a capacitance of 1000pF with a tolerance of +80%/-20% and a rated DC voltage of 100V. It can handle a rated DC current of 2A and has a high insulation resistance of 1000 MΩ min.



Operating across a wide temperature range from -55°C to +125°C, this filter is suitable for demanding environments. Its dimensions are 6.8mm in length, 1.6mm in width, and 1.9mm in height. The mounting type is Surface Mount, utilizing SMD/SMT termination.



Key electrical characteristics include a withstanding voltage of 250V DC and resistance to surge voltage up to 400V. The filter is designed as a low-pass type with LC (T-Type) technology, offering a 3rd order filter response. It is qualified under AEC-Q200, indicating its suitability for automotive applications.

NFE61HT102F2A9L Quick Information

Product Type: EMIFIL LC Combined Type
Series: NFE61H
Canonical Name: Murata NFE61H Series Chip EMIFIL LC Combined Type for Large Current
Subcategory: Feed Through Capacitors

NFE61HT102F2A9L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NFE61HT102F2A9L Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NFE61HT102F2A9L Features

  • Automotive grade LC combined filter.
  • 1000pF capacitance with 100V DC rating.
  • Rated for 2A DC current operation.
  • Wide operating temperature range: -55°C to +125°C.
  • Surface mountable SMD/SMT package.

NFE61HT102F2A9L Applications

  • Ideal for automotive EMI/RFI filtering.
  • Used for noise suppression in power lines.
  • Suitable for sensitive electronic circuits.
  • Designed for high current applications.

NFE61HT102F2A9L FAQs

4 frequently asked questions generated from this part’s specifications.
What is the capacitance of the NFE61HT102F2A9L filter?

The capacitance of the NFE61HT102F2A9L filter is 1000pF with a tolerance of +80%/-20%.

What is the voltage rating for the NFE61HT102F2A9L filter?

The NFE61HT102F2A9L filter has a rated DC voltage of 100V.

What is the operating temperature range for this Murata filter?

The NFE61HT102F2A9L filter operates between -55°C and +125°C.

What type of filter is the NFE61HT102F2A9L?

The NFE61HT102F2A9L is a Low Pass, LC (T-Type) filter.
