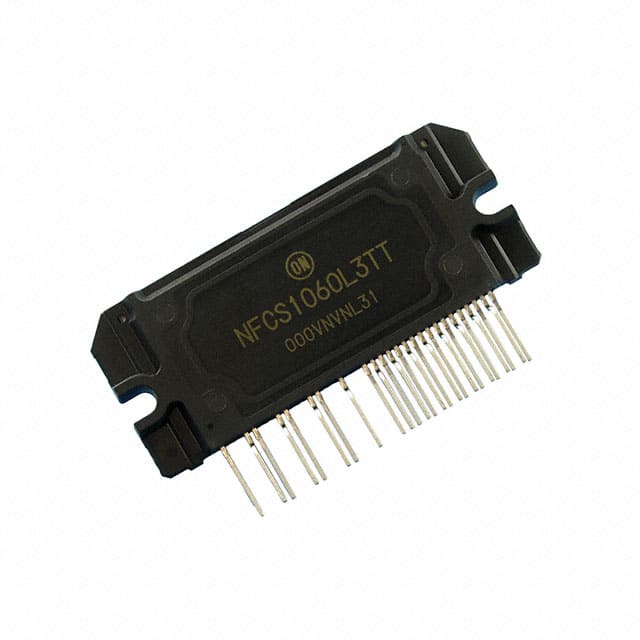

The NFCS1060L3TT from On Semiconductor is a 2-in-1 PFC and Inverter Intelligent Power Module (IPM) designed for driving various motor types including PMSM, BLDC, and AC asynchronous motors. This module operates at 600V and handles up to 10A, making it suitable for applications requiring robust power control.
Key electrical specifications include a 600V operating voltage and a 10A current rating. The module also provides 2000Vrms isolation voltage. It is configured as a 3-phase inverter and utilizes IGBT technology. The device is designed for Through Hole mounting and comes in a 35-PowerSSIP Module package with 25 leads.
This IPM integrates PFC and inverter stages in a single package, simplifying thermal design. It includes features such as cross-conduction protection, integrated bootstrap diodes and resistors, and over-current protection circuits. The NFCS1060L3TT is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 600 V.
The current rating is 10 A.
It is an IGBT device.
It is mounted Through Hole.
The package is a 35-PowerSSIP Module, 25 Leads, Formed Leads.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
