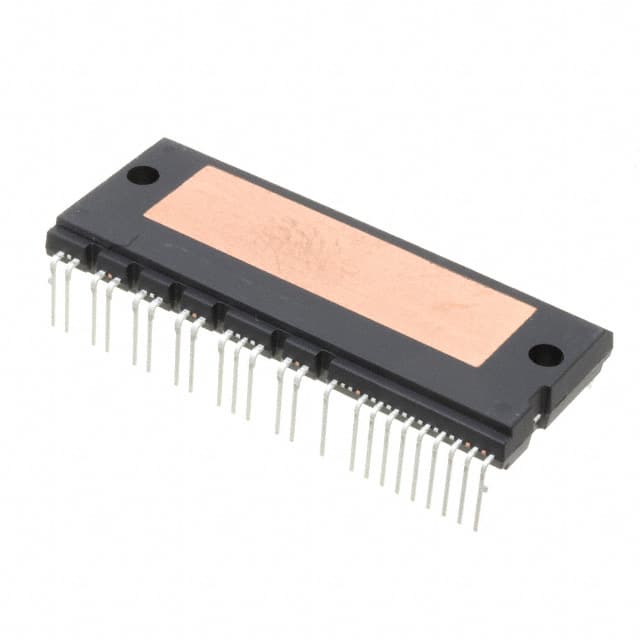

The ON Semiconductor NFAL7565L4B is a Smart Power Module (SPM) designed for high-performance inverter output stages in AC induction, BLDC, and PMSM motors. This module integrates optimized gate drive circuitry for IGBTs, minimizing EMI and losses.
Key electrical specifications include a 650V voltage rating and a 75A current rating. It functions as a 3-phase inverter and offers an isolation rating of 2500 Vrms for 1 minute. The module is built with low-loss, short-circuit-rated IGBTs and utilizes an Al2O3 DBC substrate for very low thermal resistance.
Designed for through-hole mounting, the NFAL7565L4B comes in a 30-PowerDIP Module package. It includes integrated drive, protection, and system control functions such as under-voltage lockout and over-current shutdown. Separate open-emitter pins are available for three-phase current sensing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NFAL7565L4B has a voltage rating of 650 V.
The NFAL7565L4B has a current rating of 75 A.
The NFAL7565L4B is a 3-phase IGBT Inverter Smart Power Module.
The NFAL7565L4B is designed for through-hole mounting.
The NFAL7565L4B has an isolation rating of 2500 Vrms for 1 minute.
