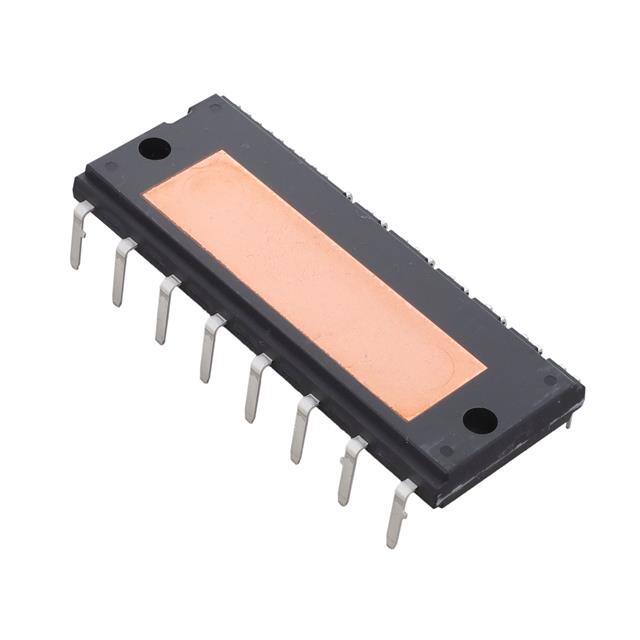

NFAL5065L4BT

The NFAL5065L4BT from On Semiconductor is a Smart Power Module (SPM) designed for high-performance inverter output stages in AC induction, BLDC, and PMSM motor applications. This module integrates optimized gate drive for built-in IGBTs to minimize EMI and losses, along with multiple on-module protection features including under-voltage lockouts, over-current shutdown, temperature sensing, and fault reporting.

Key electrical specifications include a 650 V voltage rating and a 50 A current rating, configured as a 3-phase inverter. It features an isolation rating of 2500 Vrms for 1 minute. The module utilizes IGBT technology and is housed in a 31-PowerDIP Module package suitable for Through Hole mounting.

Integrated drive, protection, and system control functions are provided. The module includes gate-drive circuits, high-voltage isolated level-shifting control circuits, and under-voltage lockout protection for high-side IGBTs. Low-side IGBTs feature short-circuit protection control and under-voltage lockout. It also incorporates a built-in NTC thermistor for temperature monitoring and management. Separate open-emitter pins are available from low-side IGBTs for three-phase current sensing.

Typical applications include motion control for industrial motors in the AC 200 V class. The device is RoHS 3 compliant and has an MSL rating of 1.
