| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
918 pcs
|
918 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Compliance | |
| Impedance | |
| Operating Temperature |

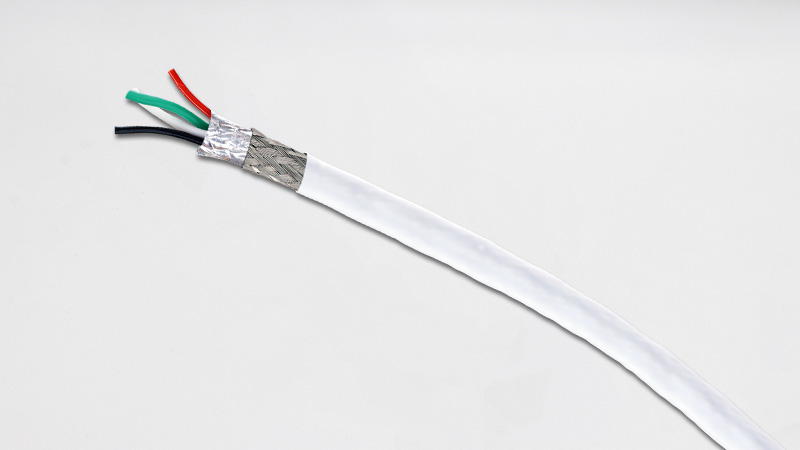

The Carlisle Interconnect Technologies Maxflite™ USB Cables series, including the NF26/22USB(A) part number, provides lightweight, small-diameter solutions for aerospace USB connections. These cables support both USB 2.0 and USB 3.0 standards, offering data rates of 40 Mbit/s and 5 Gbit/s respectively.
The NF26/22USB(A) features 26 and 24 AWG conductors, with an impedance of 90 ohms and a velocity of propagation of 70%. It operates within a wide temperature range of -55°C to 150°C and meets FAR 25.853 and Boeing/Airbus smoke and toxicity requirements.
Designed for demanding environments, these cables are flexible and minimize space within aircraft. Available configurations include options with or without drain wires, fulfilling USB 3.0 requirements up to 3 meters. Custom solutions can be engineered on-site to meet specific application needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NF26/22USB(A) cable supports USB 2.0 at 40 Mbit/s and USB 3.0 at 5 Gbit/s.
This USB cable operates within a temperature range of -55°C to 150°C.
Yes, it meets FAR 25.853 and Boeing/Airbus smoke and toxicity requirements.
The NF26/22USB(A) cable uses 26 and 24 AWG conductors.
The impedance of the NF26/22USB(A) cable is 90 ohms.
The velocity of propagation for this USB cable is 70%.
