| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

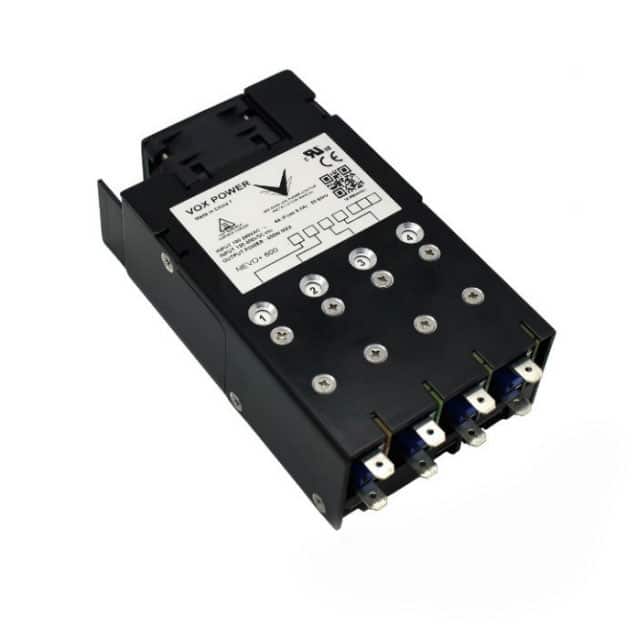

The Vox Power Ltd. NEVO+600SL-0100-DK000 is an enclosed AC/DC converter designed for industrial and technology applications. It delivers up to 450 Watts of power with an efficiency rating of 86-89% and operates within a temperature range of -20°C to 70°C.
This converter features adjustable output, load sharing, power factor correction (PFC), remote sense, and universal input. It is designed for chassis mounting and offers a voltage rating of 4 kV. The unit is approved by CB, CE, CSA, IEC, and UL standards, including IEC/UL62368-1.
Key specifications include an input voltage range of 85-264 VRMS and an input frequency range of 47-63 Hz. It has a single output and is suitable for ITE (Commercial) applications. The compact dimensions are 77.7mm x 77.7mm x 41.0mm.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. The part number is NEVO+600SL-0100-DK000, with a DK Part Number of 2050-NEVO+600SL-0100-DK000-ND.
The output power rating is 450 Watts.
The efficiency is between 86% and 89%.
The operating temperature range is -20°C to 70°C.
It is a chassis mount type.
Key features include adjustable output, load sharing, PFC, remote sense, and universal input.
It is approved to IEC/UL62368-1 standards.
