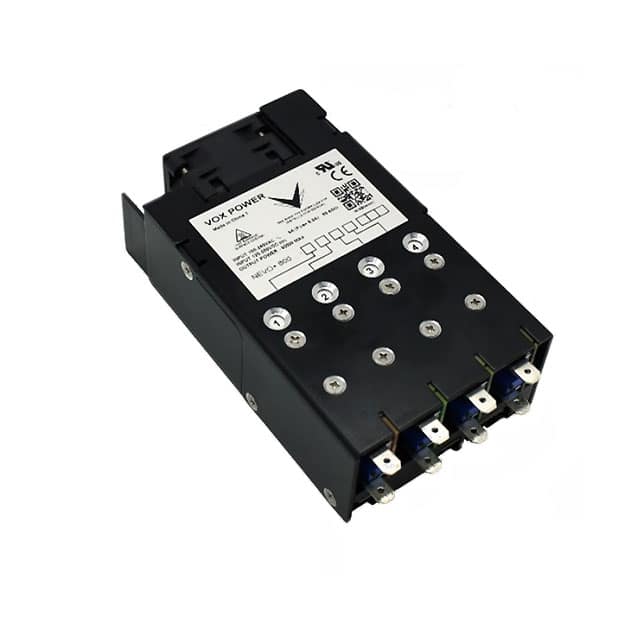

The Vox Power Ltd. NEVO+600ML-4010-DK000 is an enclosed AC/DC converter designed for various applications, including medical use. It delivers a total power of 275W, with primary output at 48V and a secondary output at 5V.
Key electrical specifications include a high efficiency of 86% and a wide input voltage range of 85-264 VAC or 120-300 VDC. The converter supports features such as adjustable output, load sharing, power factor correction (PFC), and remote sense, enhancing its versatility.
Mechanically, it is designed for chassis mounting and has dimensions of 133.8mm x 77.7mm x 41.0mm. The operating temperature range is from -20°C to 70°C, making it suitable for demanding environments. Approval agencies include CB, CE, CSA, and UL, indicating compliance with international safety standards.
The converter provides two outputs: 48V at 3.75A and 5V at 25A.
The input voltage range is 85 to 264 VAC or 120 to 300 VDC.
The operating temperature range is -20°C to 70°C.
The isolation voltage is 4 kV.
The dimensions are 133.8mm x 77.7mm x 41.0mm.
It is approved by CB, CE, CSA, and UL agencies.
The efficiency is 86%.
