NEVO+600ML-0024-DK000
Vox Power Ltd.

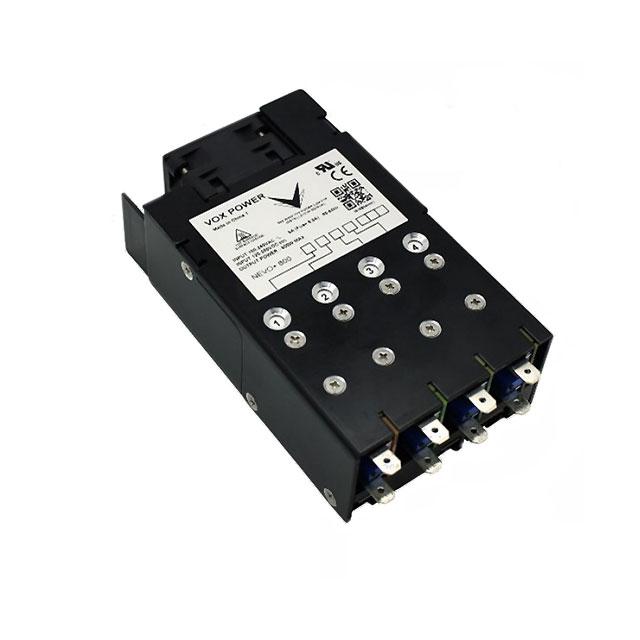

The Vox Power Ltd. NEVO+600ML-0024-DK000 is an enclosed AC/DC converter with a 300W output power and a 48V voltage. It is designed for chassis mounting and medical applications.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Vox Power Ltd. NEVO+600ML-3400-DK000 is an enclosed AC/DC converter designed for medical applications. It delivers 300W of power with dual outputs of 24V at 7.5A and 48V at 3.75A.
This converter features a universal input voltage range of 85-264 VAC or 120-300 VDC, making it suitable for global use. Its efficiency is rated at 86%, and it includes features such as adjustable output, load sharing, power factor correction (PFC), and remote sense.
The unit is chassis mountable and has dimensions of 133.8mm x 77.7mm x 41.0mm. The operating temperature range is -20°C to 70°C. It meets standard number 60601-1 and is approved by CB, CE, CSA, and UL.
Key specifications include an isolation voltage of 4 kV and a lead time of 20 weeks. The product is REACH unaffected.
Output 1 is 24V at 7.5A and Output 2 is 48V at 3.75A.
The AC input range is 85 to 264 VAC and the DC input range is 120 to 300 VDC.
The operating temperature range is -20°C to 70°C.
The total power output is 300W.
The efficiency is 86%.
The isolation voltage is 4 kV.
It complies with standard number 60601-1.
