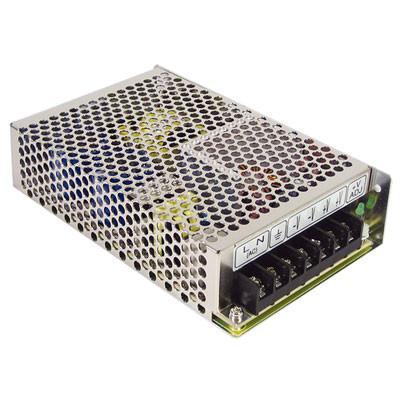

The Mean Well USA NES-75-24 is a 77W single-output AC/DC switching power supply designed for enclosed applications. It operates with a universal input voltage range of 85-264 VAC and provides a stable 24VDC output at a rated current of 3.2A. The unit boasts an efficiency of up to 86% and features adjustable output voltage within the range of 21.6 to 26.4 VDC.
Key electrical specifications include a line regulation of 1.0% and a load regulation of 0.5%. The ripple and noise are kept to a maximum of 200mVp-p. Protection features include overload protection up to 150% and overvoltage protection. The power supply is designed for chassis mounting and has dimensions of 159.0mm x 97.0mm x 38.0mm.
Environmental and safety compliance includes adherence to EN55022 Class B for emissions and EN61000-3-2,-3 for harmonic current. It also meets EMS immunity standards per EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, and EN61000-6-1. The operating temperature range is -20°C to 60°C, with a minimum MTBF of 378.2K hours at 25°C.
The output voltage is 24 VDC.
The rated current is 3.2 A.
The power rating is 76.8 W.
The typical efficiency is 86%.
The operating temperature range is -20°C to 60°C.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
