| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Package Quantity | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

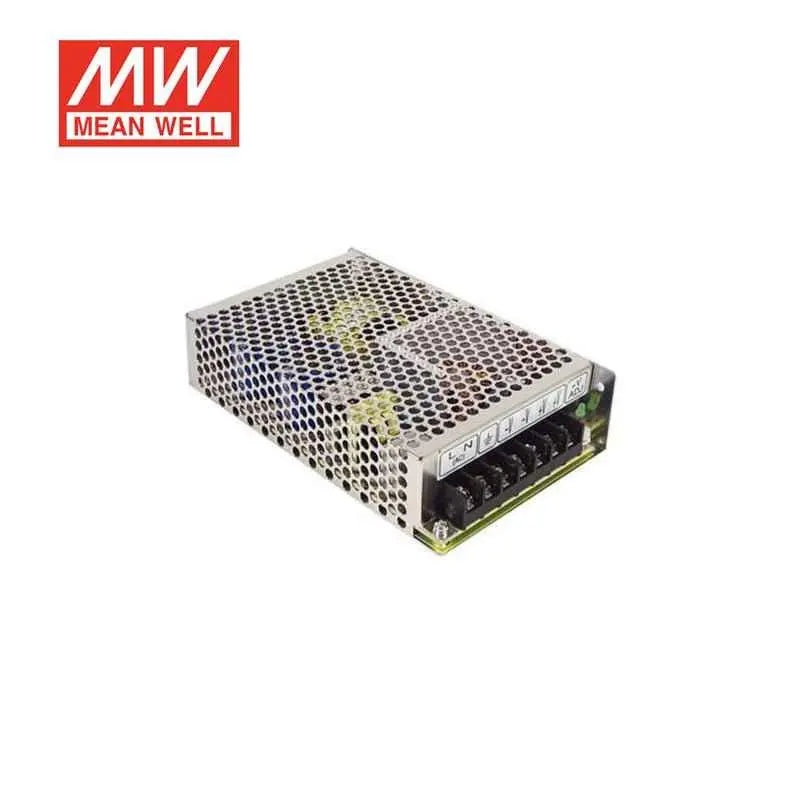

The Mean Well USA NES-75-12 is an enclosed AC/DC power supply designed for various applications. It operates with a universal AC input range of 85V to 264V and provides a stable 12V DC output at a rated current of 6.2A, delivering a total power of 74.4W. The converter features adjustable output, short circuit, overload, and over voltage protections, ensuring reliable operation.
With a chassis mount type, this unit is suitable for integration into various systems. It is cooled by free air convection and operates within a temperature range of -20°C to +60°C, with derating applied at higher temperatures. The dimensions are 159mm x 97mm x 38mm.
Safety approvals include CB, CCC, and cURus, with a withstand voltage of 3kVAC. The NES-75-12 is designed for ITE (Commercial) applications and comes with a 2-year warranty.
The output voltage is 12V.
The rated current is 6.2A.
The power rating is 74.4W.
The operating temperature range is -20°C to +60°C.
It is a chassis mount type.
It offers short circuit, overload, and over voltage protections.
