| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

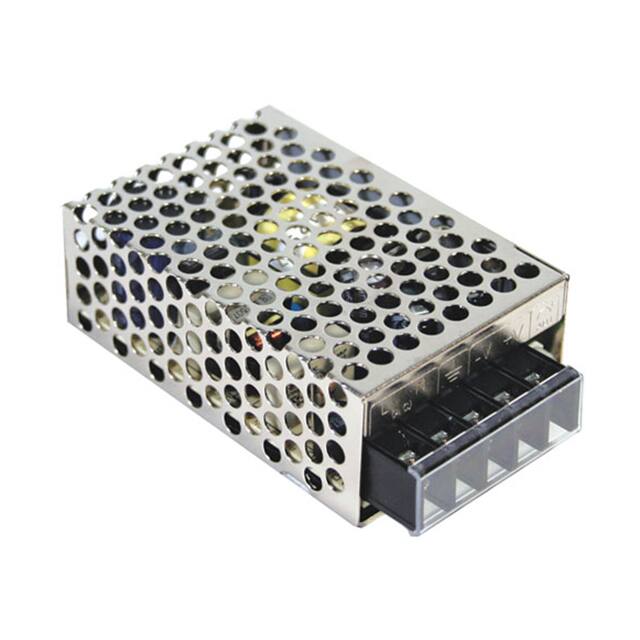

The Mean Well USA NES-15-12 is a 16-watt enclosed AC/DC power supply designed for reliable operation in commercial and ITE applications. This unit provides a single 12VDC output at 1.3A, featuring universal AC input compatibility ranging from 85 to 264VAC.
Key electrical specifications include an efficiency of 81% and an operating temperature range of -20°C to 60°C with derating. The power supply is designed for chassis mounting, offering a compact form factor with dimensions of 78.0mm x 51.0mm x 28.0mm.
Protections include short circuit, overload, and over voltage. The NES-15-12 is suitable for various ITE (Commercial) applications requiring a stable and enclosed power solution. It holds approval agency certifications from CB, CCC, and cURus.
85-264 VAC.
12 VDC at 1.3 A.
16 W.
-20°C to 60°C with derating.
CB, CCC, cURus.
81%.
78.0mm x 51.0mm x 28.0mm, chassis mount, enclosed.
