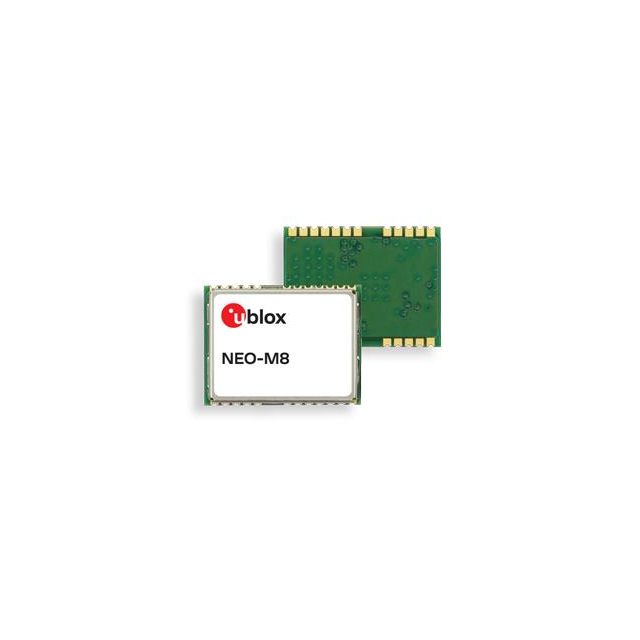

The u-blox NEO-M8Q-0 is a versatile RF receiver module supporting GNSS, GPS, GLONASS, Galileo, and BeiDou constellations. It operates at a frequency of 1.575GHz with a sensitivity of -167dBm, making it suitable for accurate positioning applications.
This receiver features multiple data interfaces including I2C, SPI, UART, and USB, providing flexibility for integration into various systems. It has a wide operating supply voltage range of 1.65V to 3.6V and a receiving current of 21mA. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
The NEO-M8Q-0 is housed in a 24-SMD Module package and is designed for surface mount applications. Its horizontal position accuracy is 2.5 meters, and it offers a cold start time to first fix of 26 seconds. This component is suitable for general-purpose applications requiring robust GNSS/GPS reception.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range for the NEO-M8Q-0 is 1.65 V to 3.6 V.
The NEO-M8Q-0 operates within a temperature range of -40°C to 85°C.
The NEO-M8Q-0 supports I2C, SPI, UART, and USB data interfaces.
The NEO-M8Q-0 supports BeiDou, Galileo, GLONASS, GNSS, and GPS constellations.
The sensitivity of the NEO-M8Q-0 is -167dBm.
The NEO-M8Q-0 is supplied in a 24-SMD Module package.
